0367831201

Active

Molex

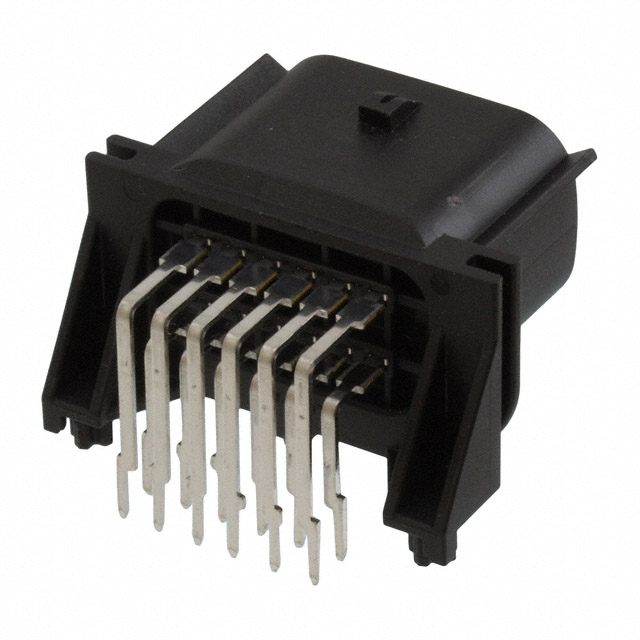

CONN HEADER R/A 12POS 3.2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMX120G Overview Datasheet

0367831201

Active

Molex

CONN HEADER R/A 12POS 3.2MM

Deep-Dive with AI

DocumentsMX120G Overview Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0367831201

Applications	Lighting, Industrial, Medical, Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Ingress Protection	IP67 - Dust Tight, Waterproof
Insulation Color	Black
Insulation Height	16.49 mm
Insulation Height	0.649 in
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 HB
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	3.2 mm
Pitch - Mating	0.126 "
Row Spacing - Mating [x]	5.93 mm
Row Spacing - Mating [x]	0.233 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

036783 Series

Part	Mounting Type	Ingress Protection	Contact Finish - Post	Contact Material	Number of Positions	Connector Type	Fastening Type	Number of Positions Loaded	Applications	Contact Shape	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Termination	Insulation Material	Number of Rows	Insulation Color	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Shrouding	Material Flammability Rating
Molex 0367831202	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	Tin	Brass	12	Header	Locking Ramp	All	Automotive Industrial Lighting Medical	Square	Board to Cable/Wire	5.93 mm	0.233 in	3.2 mm	0.126 "	Solder	Glass Filled Nylon Polyamide (PA)	2	Black	16.49 mm	0.649 in	1 µm	39.4 µin	Male Pin	Shrouded - 4 Wall	UL94 HB
Molex 0367831205	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	Tin	Brass	12	Header	Locking Ramp	All	Automotive Industrial Lighting Medical	Square	Board to Cable/Wire	5.93 mm	0.233 in	3.2 mm	0.126 "	Solder	Glass Filled Nylon Polyamide (PA)	2	Black	16.49 mm	0.649 in	1 µm	39.4 µin	Male Pin	Shrouded - 4 Wall	UL94 HB
Molex 0367831203	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	Tin	Brass	12	Header	Locking Ramp	All	Automotive Industrial Lighting Medical	Square	Board to Cable/Wire	5.93 mm	0.233 in	3.2 mm	0.126 "	Solder	Glass Filled Nylon Polyamide (PA)	2	Black	16.49 mm	0.649 in	1 µm	39.4 µin	Male Pin	Shrouded - 4 Wall	UL94 HB
Molex 0367831207	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	Tin	Brass	12	Header	Locking Ramp	All	Automotive Industrial Lighting Medical	Square	Board to Cable/Wire	5.93 mm	0.233 in	3.2 mm	0.126 "	Solder	Glass Filled Nylon Polyamide (PA)	2	Black	16.49 mm	0.649 in	1 µm	39.4 µin	Male Pin	Shrouded - 4 Wall	UL94 HB
Molex 0367831208	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	Tin	Brass	12	Header	Locking Ramp	All	Automotive Industrial Lighting Medical	Square	Board to Cable/Wire	5.93 mm	0.233 in	3.2 mm	0.126 "	Solder	Glass Filled Nylon Polyamide (PA)	2	Black	16.49 mm	0.649 in	1 µm	39.4 µin	Male Pin	Shrouded - 4 Wall	UL94 HB
Molex 0367831201	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	Tin	Brass	12	Header	Locking Ramp	All	Automotive Industrial Lighting Medical	Square	Board to Cable/Wire	5.93 mm	0.233 in	3.2 mm	0.126 "	Solder	Glass Filled Nylon Polyamide (PA)	2	Black	16.49 mm	0.649 in	1 µm	39.4 µin	Male Pin	Shrouded - 4 Wall	UL94 HB
Molex 0367831204	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	Tin	Brass	12	Header	Locking Ramp	All	Automotive Industrial Lighting Medical	Square	Board to Cable/Wire	5.93 mm	0.233 in	3.2 mm	0.126 "	Solder	Glass Filled Nylon Polyamide (PA)	2	Black	16.49 mm	0.649 in	1 µm	39.4 µin	Male Pin	Shrouded - 4 Wall	UL94 HB
Molex 0367831206	Panel Mount Right Angle Through Hole	IP67 - Dust Tight Waterproof	Tin	Brass	12	Header	Locking Ramp	All	Automotive Industrial Lighting Medical	Square	Board to Cable/Wire	5.93 mm	0.233 in	3.2 mm	0.126 "	Solder	Glass Filled Nylon Polyamide (PA)	2	Black	16.49 mm	0.649 in	1 µm	39.4 µin	Male Pin	Shrouded - 4 Wall	UL94 HB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.84
		10	$ 1.39
		100	$ 1.09
		500	$ 0.94
		1000	$ 0.89
		5000	$ 0.79
		10000	$ 0.76

Description

General part information

036783 Series

Connector Header Panel Mount, Through Hole, Right Angle 12 position 0.126" (3.20mm)

Documents

Technical documentation and resources

MX120G Overview

Datasheet
