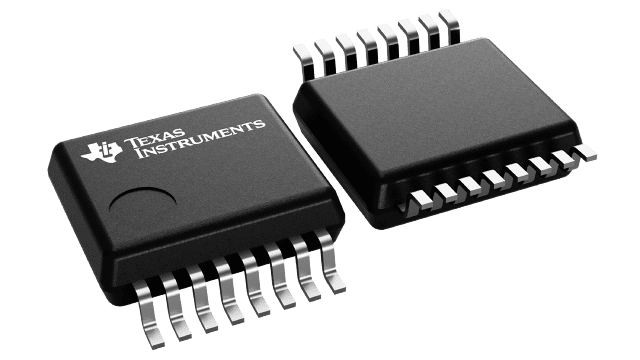

74AC11032DBR

Active

Texas Instruments

4-CH, 2-INPUT, 3-V TO 5.5-V 24-MA DRIVE STRENGTH OR GATE

Search across all available documentation for this part.

Active

Texas Instruments

4-CH, 2-INPUT, 3-V TO 5.5-V 24-MA DRIVE STRENGTH OR GATE

Technical Specifications

Parameters and characteristics for this part

Specification	74AC11032DBR

Current - Output High, Low	24 mA
Current - Quiescent (Max) [Max]	4 µA
Input Logic Level - High [Max]	3.85 V
Input Logic Level - High [Min]	2.1 V
Input Logic Level - Low [Max]	1.65 V
Input Logic Level - Low [Min]	0.9 V
Logic Type	OR Gate
Max Propagation Delay @ V, Max CL	6.2 ns
Mounting Type	Surface Mount
Number of Circuits	4
Number of Inputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	16-SSOP
Package / Case [custom]	0.209 in
Package / Case [custom]	5.3 mm
Supplier Device Package	16-SSOP
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	3 V

4-ch, 2-input, 3-V to 5.5-V 24-mA drive strength OR gate

Part	Logic Type	Mounting Type	Number of Inputs	Current - Output High, Low	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Number of Circuits	Current - Quiescent (Max) [Max]	Input Logic Level - High [Min]	Input Logic Level - High [Max]	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Package / Case [x]	Package / Case [y]	Max Propagation Delay @ V, Max CL	Package / Case [custom]	Package / Case [custom]
Texas Instruments 74AC11032DR	OR Gate	Surface Mount	2	24 mA	85 °C	-40 °C	16-SOIC	4	4 µA	2.1 V	3.85 V	1.65 V	0.9 V	5.5 V	3 V	16-SOIC	0.154 in	3.9 mm	6.2 ns
Texas Instruments 74AC11032D	OR Gate	Surface Mount	2	24 mA	85 °C	-40 °C	16-SOIC	4	4 µA	2.1 V	3.85 V	1.65 V	0.9 V	5.5 V	3 V	16-SOIC	0.154 in	3.9 mm	6.2 ns
Texas Instruments 74AC11032DBR	OR Gate	Surface Mount	2	24 mA	85 °C	-40 °C	16-SSOP	4	4 µA	2.1 V	3.85 V	1.65 V	0.9 V	5.5 V	3 V	16-SSOP			6.2 ns	0.209 in	5.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

This device contains four independent 2-input OR gates. It performs the Boolean function

Y= A + B orin positive logic.

The 74AC11032 is characterized for operation from -40°C to 85°C.
