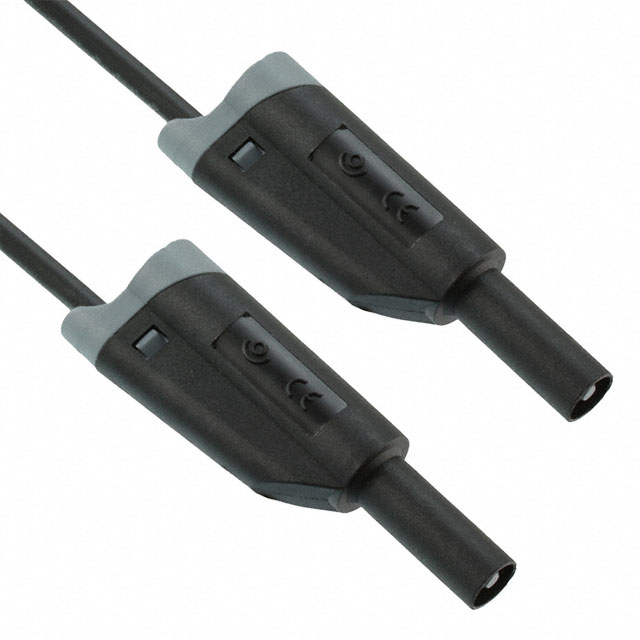

CT2521-10-0

Active

Cal Test Electronics

LEAD, 4MM STKSHTH P-P - SILIC 0.75, 10CM, BLACK ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CT2521-10-0

Active

Cal Test Electronics

LEAD, 4MM STKSHTH P-P - SILIC 0.75, 10CM, BLACK ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CT2521-10-0

1st Connector	Sheathed, Stackable, Banana Plug, Single
2nd Connector	Banana Plug, Single, Stackable, Sheathed
Cable Length [x]	4 in
Cable Length [x]	101.6 mm
Configuration	Banana to Banana
Contents	1 Lead, Black
Current Rating (Amps)	12 A
Material - Insulation	Silicone
Ratings	CAT III 1000V, CAT IV 600V
Stacking Method	Front Stacking
Type	Patch Cord
Voltage - Rated	1000 V, 600 VDC
Wire Gauge	18 AWG

CT2521 Series

Part	2nd Connector	Material - Insulation	Ratings	Contents	1st Connector	Configuration	Voltage - Rated	Stacking Method	Current Rating (Amps)	Type	Cable Length	Cable Length	Wire Gauge	Contents [custom]	Cable Length [x]	Cable Length [x]
Cal Test Electronics CT2521-150-0	Banana Plug Single Stackable Sheathed	Silicone	CAT III 1000V CAT IV 600V	1 Lead Black	Banana Plug Sheathed Single Stackable	Banana to Banana	600 VDC 1000 V	Front Stacking	12 A	Patch Cord	59.1 in	1.5 m	18 AWG
Cal Test Electronics CT2521-200-9	Banana Plug Single Stackable Sheathed	Silicone	CAT III 1000V CAT IV 600V	1 Lead White	Banana Plug Sheathed Single Stackable	Banana to Banana	600 VDC 1000 V	Front Stacking	12 A	Patch Cord	78.7 in	2 m	18 AWG
Cal Test Electronics CT2521-50-6	Banana Plug Single Stackable Sheathed	Silicone	CAT III 1000V CAT IV 600V	1 Lead Blue	Banana Plug Sheathed Single Stackable	Banana to Banana	600 VDC 1000 V	Front Stacking	12 A	Patch Cord	19.7 in	50 cm	18 AWG
Cal Test Electronics CT2521-150-2	Banana Plug Single Stackable Sheathed	Silicone	CAT III 1000V CAT IV 600V	Red	Banana Plug Sheathed Single Stackable	Banana to Banana	600 VDC 1000 V	Front Stacking	12 A	Patch Cord	59.1 in	1.5 m	18 AWG	1
Cal Test Electronics CT2521-50-4	Banana Plug Single Stackable Sheathed	Silicone	CAT III 1000V CAT IV 600V	1 Lead Yellow	Banana Plug Sheathed Single Stackable	Banana to Banana	600 VDC 1000 V	Front Stacking	12 A	Patch Cord	19.7 in	50 cm	18 AWG
Cal Test Electronics CT2521-150-6	Banana Plug Single Stackable Sheathed	Silicone	CAT III 1000V CAT IV 600V	1 Lead Blue	Banana Plug Sheathed Single Stackable	Banana to Banana	600 VDC 1000 V	Front Stacking	12 A	Patch Cord	59.1 in	1.5 m	18 AWG
Cal Test Electronics CT2521-50-9	Banana Plug Single Stackable Sheathed	Silicone	CAT III 1000V CAT IV 600V	1 Lead White	Banana Plug Sheathed Single Stackable	Banana to Banana	600 VDC 1000 V	Front Stacking	12 A	Patch Cord	19.7 in	50 cm	18 AWG
Cal Test Electronics CT2521-25-5	Banana Plug Single Stackable Sheathed	Silicone	CAT III 1000V CAT IV 600V		Banana Plug Sheathed Single Stackable	Banana to Banana	600 VDC 1000 V	Front Stacking	12 A	Patch Cord	9.8 in	250 mm	18 AWG
Cal Test Electronics CT2521-25-2	Banana Plug Single Stackable Sheathed	Silicone	CAT III 1000V CAT IV 600V	Red	Banana Plug Sheathed Single Stackable	Banana to Banana	600 VDC 1000 V	Front Stacking	12 A	Patch Cord	9.8 in	250 mm	18 AWG	1
Cal Test Electronics CT2521-10-0	Banana Plug Single Stackable Sheathed	Silicone	CAT III 1000V CAT IV 600V	1 Lead Black	Banana Plug Sheathed Single Stackable	Banana to Banana	600 VDC 1000 V	Front Stacking	12 A	Patch Cord			18 AWG		4 in	101.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 10.00
Newark	Each	1	$ 11.00

Description

General part information

CT2521 Series

4.0" (101.60mm) Banana Plug, Single, Stackable, Sheathed To Banana Plug, Single, Stackable, Sheathed Patch Cord 600V, 1000V
