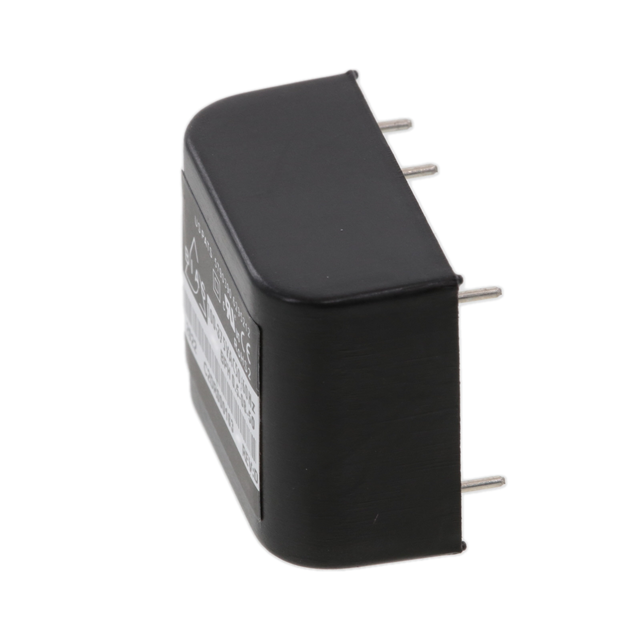

BPH-0.5-08-50

Active

Cita Technologies, LLC.

AC/DC CONVERTER 8V 5V 819MW

Search across all available documentation for this part.

Active

Cita Technologies, LLC.

AC/DC CONVERTER 8V 5V 819MW

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Type	Mounting Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Applications	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Power (Watts)	Current - Output (Max)	Current - Output (Max) [Max]
Cita Technologies, LLC. BPH-0.5-08-00	70 %	Enclosed	Through Hole	CB cURus	70 °C	-30 ░C	7-DIP Module	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	ITE (Commercial)	1	100 VAC	375 VAC	8 V
Cita Technologies, LLC. BPH-0.5-14-00	70 %	Enclosed	Through Hole	CB cURus	70 °C	-30 ░C	7-DIP Module	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	ITE (Commercial)	1	100 VAC	375 VAC	14 V
Cita Technologies, LLC. BPH-0.5-14-50	70 %	Enclosed	Through Hole	CB cURus	70 °C	-30 ░C	7-DIP Module	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	ITE (Commercial)	2	100 VAC	375 VAC	14 V	572 mW	28 mA 36 mA
Cita Technologies, LLC. BPH-0.5-08-50	70 %	Enclosed	Through Hole	CB cURus	70 °C	-30 ░C	7-DIP Module	0.92 "	27.9 mm	0.55 in	14 mm	1.1 "	23.2 mm	ITE (Commercial)	2	100 VAC	375 VAC	8 V	819 mW		63 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.82

General part information

Enclosed AC DC Converters 2 Output 8V 63mA, 63mA 100 ~ 375 VAC Input
