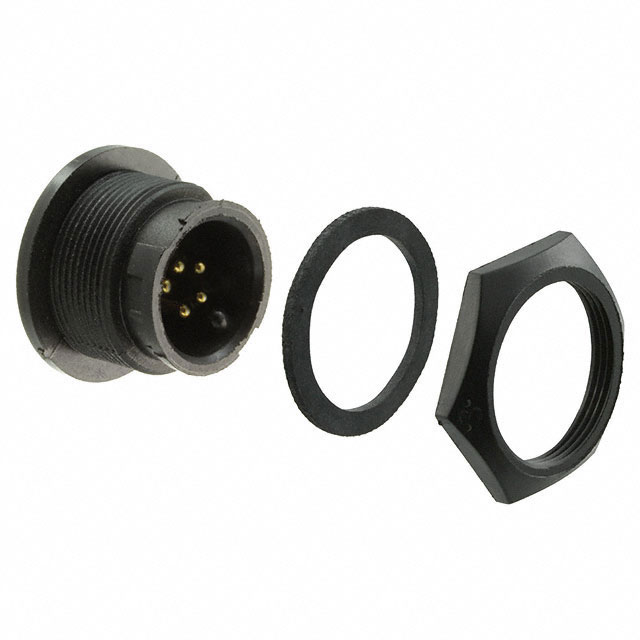

7381-5PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 5POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 5POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	7381-5PG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Solder
Voltage Rating	600 V

Part	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Current Rating (Amps)	Orientation	Applications	Color	Shielding	Fastening Type	Mounting Feature	Backshell Material, Plating	Connector Type	Mounting Type	Primary Material	Ingress Protection	Contact Material	Voltage Rating
Conxall/Switchcraft 7381-5PG-300	Solder	115 °C	-40 °C	Gold	Varies by Wire Gauge	Keyed	Automotive Communication Systems Instrumentation	Black	Unshielded	Bayonet Lock	Bulkhead - Front Side Nut	Nylon Polyamide (PA)	Male Pins Receptacle	Panel Mount Through Hole	Plastic	Weathertight	Brass	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder
