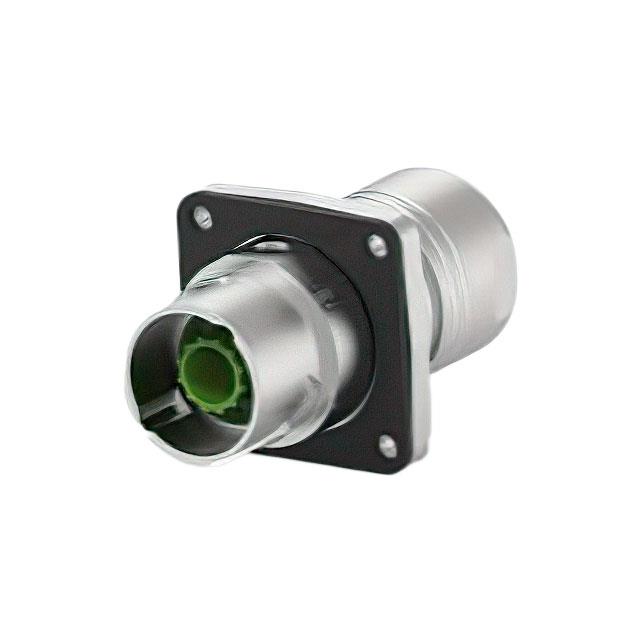

EKA001N00310103000

Active

TE Intercontec

CONN RCP HSG M 12P INLINE PNL MT

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCP HSG M 12P INLINE PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	EKA001N00310103000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Housing Color	Silver
Includes	1 Backshell, 1 Cable Clamp, 1 O-Ring, 1 Connector
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Free Hanging (In-Line), Panel Mount
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shielding	Shielded
Type	For Male Pins

Part	Connector Type	Material Flammability Rating	Insert Material	Note	Ingress Protection	Fastening Type	Shell Material	Housing Color [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Type	Contact Shape	Mounting Type	Number of Positions	Orientation	Shielding	Features	Mounting Feature	Shell Finish	Housing Color
TE Intercontec EKA001N00320001000	Receptacle Housing	UL94 V-0	Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	Contacts Not Included	IP66/IP67	Bayonet Lock	Zinc Die Cast	Green Silver	-20 C	130 °C	1 Clip 1 Contact Block 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing	For Male Pins	Circular	Free Hanging (In-Line)	12	Keyed	Shielded	Backshell Cable Clamp
TE Intercontec EKA001N00310103000	Receptacle Housing	UL94 V-0	Polyamide (PA) Nylon Polybutylene Terephthalate (PBT)	Contacts Not Included	IP66/IP67	Bayonet Lock	Zinc Die Cast		-20 C	130 °C	1 Backshell 1 Cable Clamp 1 Connector 1 O-Ring	For Male Pins	Circular	Free Hanging (In-Line) Panel Mount	12	Keyed	Shielded	Backshell Cable Clamp	Flange	Nickel	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle Housing Free Hanging (In-Line); Panel Mount Backshell, Cable Clamp
