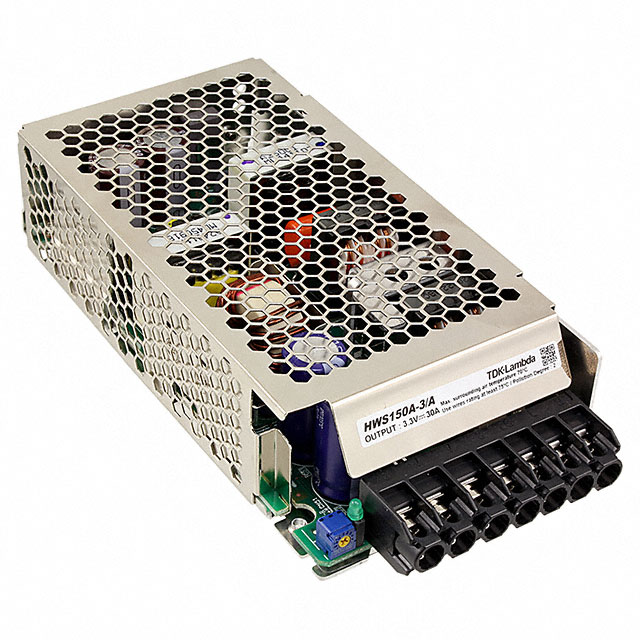

HWS150A-3/A

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 150 W, 3.3 V, 30 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

HWS150A-3/A

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 150 W, 3.3 V, 30 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HWS150A-3/A

Applications	Industrial, ITE (Commercial)
Approval Agency	CE
Current - Output 1	30 A
Efficiency	81 %
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	150 W
Size / Dimension [x]	6.3 "
Size / Dimension [x]	160 mm
Size / Dimension [y]	1.65 in
Size / Dimension [y]	41.9 mm
Size / Dimension [z]	3.23 in
Size / Dimension [z]	82 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	3.3 V

HWS150 Series

Part	Size / Dimension	Size / Dimension	Approval Agency	Applications	Type	Efficiency	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Number of Outputs	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Output 1	Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]
TDK-LAMBDA HWS150A-24/ME	42 mm 82 mm 160 mm	3.23 in 6.3 in 41.91 mm	CE	ITE (Commercial) Medical	Open Frame	90 %	24 V	85 VAC	265 VAC	3000 V	1	150 W	-10 °C	70 °C	Chassis Mount
TDK-LAMBDA HWS150A-5/ME	42 mm 82 mm 160 mm	3.23 in 6.3 in 41.91 mm	CE	ITE (Commercial) Medical	Open Frame	87 %	5 V	85 VAC	265 VAC	3000 V	1	150 W	-10 °C	70 °C	Chassis Mount	30 A
TDK-LAMBDA HWS150A-48/ME	42 mm 82 mm 160 mm	3.23 in 6.3 in 41.91 mm	CE	ITE (Commercial) Medical	Open Frame	91 %	48 V	85 VAC	265 VAC	3000 V	1	150 W	-10 °C	70 °C	Chassis Mount	3.3 A
TDK-LAMBDA HWS150A-24			CE	Industrial ITE (Commercial)	Open Frame	90 %	24 V	85 VAC 120 VDC	264 VAC 370 VDC	3000 V	1	150 W	-10 °C	70 °C	Chassis Mount		Adjustable Output Remote Sense Universal Input	6.3 "	160 mm	42 mm	1.65 in	82 mm	3.23 in
TDK-LAMBDA HWS150A-48			CE	Industrial ITE (Commercial)	Open Frame	91 %	48 V	85 VAC 120 VDC	264 VAC 370 VDC	3000 V	1	150 W	-10 °C	70 °C	Chassis Mount	3.3 A	Adjustable Output Remote Sense Universal Input	6.3 "	160 mm	42 mm	1.65 in	82 mm	3.23 in
TDK-LAMBDA HWS150A-3/A			CE	Industrial ITE (Commercial)	Enclosed	81 %	3.3 V	85 VAC 120 VDC	264 VAC 370 VDC	3000 V	1	150 W	-10 °C	70 °C	Chassis Mount	30 A	Adjustable Output Remote Sense Universal Input	6.3 "	160 mm	41.9 mm	1.65 in	82 mm	3.23 in
TDK-LAMBDA HWS150A-12/A			CE	Industrial ITE (Commercial)	Enclosed	86 %	12 V	85 VAC 120 VDC	264 VAC 370 VDC	3000 V	1	150 W	-10 °C	70 °C	Chassis Mount	13 A	Adjustable Output Remote Sense Universal Input	6.3 "	160 mm	41.9 mm	1.65 in	82 mm	3.23 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 152.87
		10	$ 145.12
		25	$ 137.92
		50	$ 133.76
Newark	Each	1	$ 152.87
		10	$ 145.12
		25	$ 137.92
		50	$ 131.02

Description

General part information

HWS150 Series

Enclosed AC DC Converters 1 Output 3.3V 85 ~ 264 VAC, 120 ~ 370 VDC Input

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Declaration of Conformity EN

Datasheet
