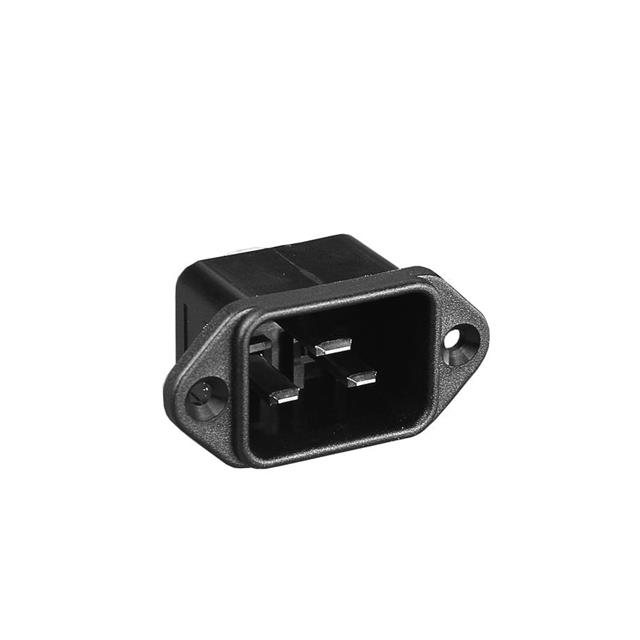

PX0596/63
ActiveBULGIN LIMITED
IEC POWER CONNECTOR, IEC C20 INLET, 10 A, 250 VAC, QUICK CONNECT, SNAP-IN, FLANGE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
PX0596/63
ActiveBULGIN LIMITED
IEC POWER CONNECTOR, IEC C20 INLET, 10 A, 250 VAC, QUICK CONNECT, SNAP-IN, FLANGE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PX0596/63 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | UR, VDE, CSA, ENEC |
| Connector Style | IEC 320-C20 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 16 A |
| Filter Type | Unfiltered - Commercial |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 32.3 mm |
| Panel Cutout Dimensions [y] | 24.3 mm |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.53 | |
| 10 | $ 5.02 | |||
| 25 | $ 4.76 | |||
| 50 | $ 4.64 | |||
| 100 | $ 4.42 | |||
| 250 | $ 3.87 | |||
| 500 | $ 3.76 | |||
| 1000 | $ 3.21 | |||
| 2500 | $ 2.99 | |||
Description
General part information
PX0596 Series
The PX0596/63 from Bulgin is a high current IEC power inlet with flange mounting. This EN60320-1 standard sheet C20 IEC inlet connector has electrical rating up to 16A, 250VAC offer solutions to most mains powered equipment and cable applications. Conform
