M20-9760942

Active

Harwin Inc.

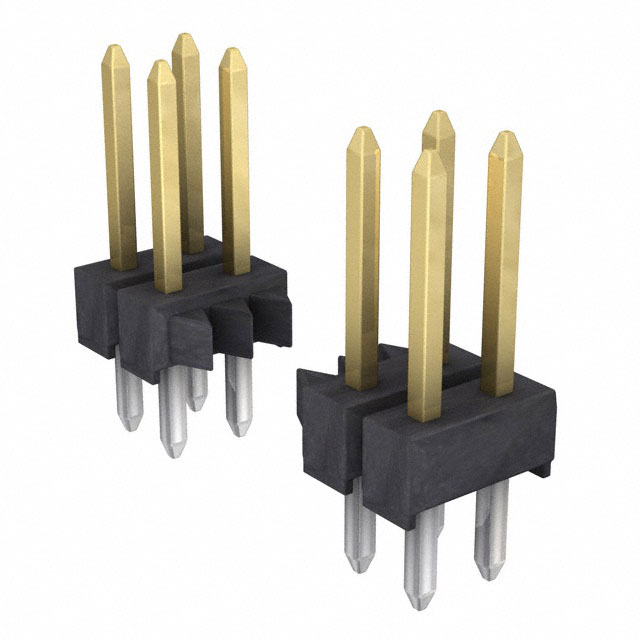

CONNECTOR, HEADER, 18POS, 2.54MM, 2ROW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue EN Drawing EN +3

M20-9760942

Active

Harwin Inc.

CONNECTOR, HEADER, 18POS, 2.54MM, 2ROW

Deep-Dive with AI

DocumentsManufacturer Catalogue EN Drawing EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M20-9760942

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Length - Mating	0.228 in
Contact Length - Mating	5.8 mm
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	9.94 mm, 11.04 mm, 16.54 mm, 10.64 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.452 "
Overall Contact Length	11.48 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

M20-976 Series

Part	Number of Positions Loaded	Number of Positions	Insulation Height	Insulation Height	Fastening Type	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Mated Stacking Heights	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Material	Style	Material Flammability Rating	Insulation Color	Contact Finish - Mating	Insulation Material	Mounting Type	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Connector Type	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Number of Positions
Harwin Inc. M20-9760842	All	16	0.1 in	2.54 mm	Push-Pull	0.122 "	3.1 mm	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	2	0.452 "	11.48 mm	Brass	Board to Board Cable	UL94 V-0	Black	Gold	Nylon 6T Polyamide (PA6T)	Through Hole	Square	0.1 in	2.54 mm	0.228 in	5.8 mm	Cuttable Header	Unshrouded	-40 °C	105 ░C	Male Pin	Solder	2.54 mm	0.1 in	Tin
Harwin Inc. M20-9761246	All		0.1 in	2.54 mm	Push-Pull	0.122 "	3.1 mm	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	2	0.452 "	11.48 mm	Brass	Board to Board Cable	UL94 V-0	Black		Nylon 6T Polyamide (PA6T)	Through Hole	Square	0.1 in	2.54 mm	0.228 in	5.8 mm	Cuttable Header	Unshrouded	-40 °C	105 ░C	Male Pin	Solder	2.54 mm	0.1 in	Tin	24
Harwin Inc. M20-9760942	All		0.1 in	2.54 mm	Push-Pull	0.122 "	3.1 mm	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	2	0.452 "	11.48 mm	Brass	Board to Board Cable	UL94 V-0	Black	Gold	Nylon 6T Polyamide (PA6T)	Through Hole	Square	0.1 in	2.54 mm	0.228 in	5.8 mm	Cuttable Header	Unshrouded	-40 °C	105 ░C	Male Pin	Solder	2.54 mm	0.1 in	Tin	18
Harwin Inc. M20-9760342	All		0.1 in	2.54 mm	Push-Pull	0.122 "	3.1 mm	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	2	0.452 "	11.48 mm	Brass	Board to Board Cable	UL94 V-0	Black	Gold	Nylon 6T Polyamide (PA6T)	Through Hole	Square	0.1 in	2.54 mm	0.228 in	5.8 mm	Cuttable Header	Unshrouded	-40 °C	105 ░C	Male Pin	Solder	2.54 mm	0.1 in	Tin	6
Harwin Inc. M20-9760246	All		0.1 in	2.54 mm	Push-Pull	0.122 "	3.1 mm	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	2	0.452 "	11.48 mm	Brass	Board to Board Cable	UL94 V-0	Black		Nylon 6T Polyamide (PA6T)	Through Hole	Square	0.1 in	2.54 mm	0.228 in	5.8 mm	Cuttable Header	Unshrouded	-40 °C	105 ░C	Male Pin	Solder	2.54 mm	0.1 in	Tin	4
Harwin Inc. M20-9760742	All		0.1 in	2.54 mm	Push-Pull	0.122 "	3.1 mm	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	2	0.452 "	11.48 mm	Brass	Board to Board Cable	UL94 V-0	Black	Gold	Nylon 6T Polyamide (PA6T)	Through Hole	Square	0.1 in	2.54 mm	0.228 in	5.8 mm	Cuttable Header	Unshrouded	-40 °C	105 ░C	Male Pin	Solder	2.54 mm	0.1 in	Tin	14
Harwin Inc. M20-9761342	All		0.1 in	2.54 mm	Push-Pull	0.122 "	3.1 mm	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	2	0.452 "	11.48 mm	Brass	Board to Board Cable	UL94 V-0	Black	Gold	Nylon 6T Polyamide (PA6T)	Through Hole	Square	0.1 in	2.54 mm	0.228 in	5.8 mm	Cuttable Header	Unshrouded	-40 °C	105 ░C	Male Pin	Solder	2.54 mm	0.1 in	Tin	26
Harwin Inc. M20-9763646	All		0.1 in	2.54 mm	Push-Pull	0.122 "	3.1 mm	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	2	0.452 "	11.48 mm	Brass	Board to Board Cable	UL94 V-0	Black		Nylon 6T Polyamide (PA6T)	Through Hole	Square	0.1 in	2.54 mm	0.228 in	5.8 mm	Cuttable Header	Unshrouded	-40 °C	105 ░C	Male Pin	Solder	2.54 mm	0.1 in	Tin	72
Harwin Inc. M20-9760442	All		0.1 in	2.54 mm	Push-Pull	0.122 "	3.1 mm	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	2	0.452 "	11.48 mm	Brass	Board to Board Cable	UL94 V-0	Black	Gold	Nylon 6T Polyamide (PA6T)	Through Hole	Square	0.1 in	2.54 mm	0.228 in	5.8 mm	Cuttable Header	Unshrouded	-40 °C	105 ░C	Male Pin	Solder	2.54 mm	0.1 in	Tin	8
Harwin Inc. M20-9762042	All		0.1 in	2.54 mm	Push-Pull	0.122 "	3.1 mm	3 A	9.94 mm 10.64 mm 11.04 mm 16.54 mm	2	0.452 "	11.48 mm	Brass	Board to Board Cable	UL94 V-0	Black	Gold	Nylon 6T Polyamide (PA6T)	Through Hole	Square	0.1 in	2.54 mm	0.228 in	5.8 mm	Cuttable Header	Unshrouded	-40 °C	105 ░C	Male Pin	Solder	2.54 mm	0.1 in	Tin	40

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.83
		10	$ 0.70
		100	$ 0.63
		500	$ 0.52
		1000	$ 0.46
		5000	$ 0.40
		10000	$ 0.38
Newark	Each	1	$ 0.77

Description

General part information

M20-976 Series

Connector Header Through Hole 18 position 0.100" (2.54mm)
