AT2520SE9ZS

Obsolete

Kingbright

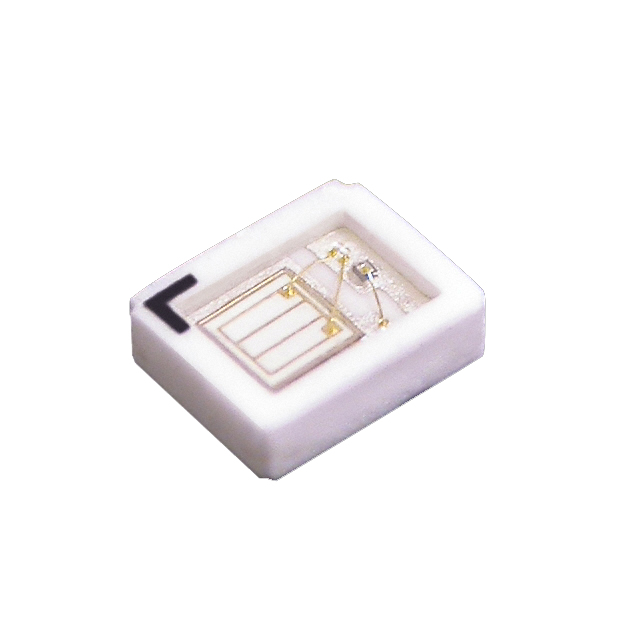

LED RED 623NM SMD

Search across all available documentation for this part.

Obsolete

Kingbright

LED RED 623NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	AT2520SE9ZS

Color	Red
Current - Max [Max]	250 mA
Current - Test	250 mA
Lumens/Watt @ Current - Test	24 lm/W
Luminous Flux @ Current/Temperature	14 lm
Mounting Type	Surface Mount
Package / Case	1008
Size / Dimension [x]	0.098 "
Size / Dimension [x]	2.5 mm
Size / Dimension [y]	2 mm
Size / Dimension [y]	0.079 in
Supplier Device Package	CSMD
Thermal Resistance of Package [custom]	120 °C/W
Viewing Angle	130 °
Voltage - Forward (Vf) (Typ)	2.3 V
Wavelength	623 nm

Part	Supplier Device Package	Current - Test	Luminous Flux @ Current/Temperature	Package / Case	Viewing Angle	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Wavelength	Mounting Type	Color	Thermal Resistance of Package [custom]	Lumens/Watt @ Current - Test
Kingbright AT2520SE9ZS	CSMD	250 mA	14 lm	1008	130 °	250 mA	0.098 "	2 mm	2.5 mm	0.079 in	2.3 V	623 nm	Surface Mount	Red	120 °C/W	24 lm/W
Kingbright AT2520ZG10ZS	CSMD	250 mA	38 lm	1008	120 °	250 mA	0.098 "	2 mm	2.5 mm	0.079 in	3.6 V	530 nm	Surface Mount	Green	120 °C/W	42 lm/W
Kingbright AT2520SY9ZS	CSMD	250 mA	14 lm	1008	130 °	250 mA	0.098 "	2 mm	2.5 mm	0.079 in	2.3 V	591 nm	Surface Mount	Yellow	140 °C/W	24 lm/W
