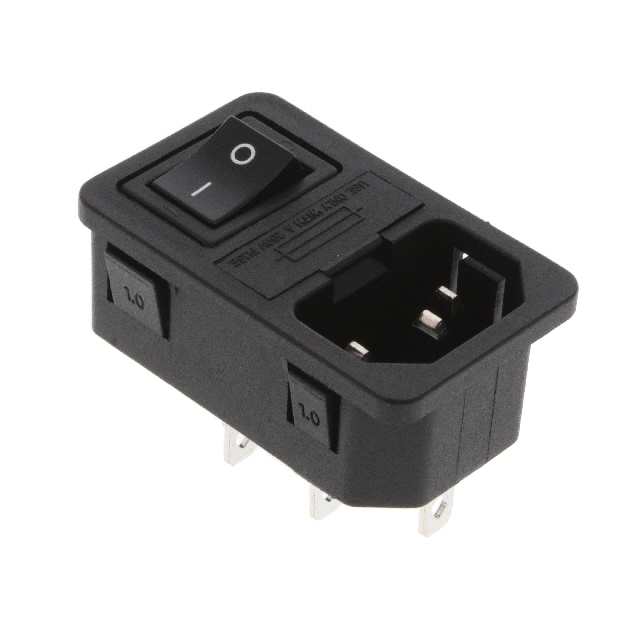

IEC-GS-1-100
ActiveAdam Tech
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
IEC-GS-1-100
ActiveAdam Tech
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IEC-GS-1-100 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | ENEC, CCC, cURus |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Filter Type | Unfiltered - Commercial |
| Fuse Holder, Drawer | Fuse Holder |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 27.3 mm |
| Panel Cutout Dimensions [y] | 46.9 mm |
| Switch Features | Switch On-Off |
| Termination | 0.187 " |
| Termination | 4.7 mm |
| Termination | Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.86 | |
| 10 | $ 5.26 | |||
| 25 | $ 4.74 | |||
| 50 | $ 4.39 | |||
| 100 | $ 4.08 | |||
| 250 | $ 3.70 | |||
| 500 | $ 3.45 | |||
| 1000 | $ 3.23 | |||
| 2500 | $ 2.96 | |||
Description
General part information
IEC-GS Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
Documents
Technical documentation and resources
