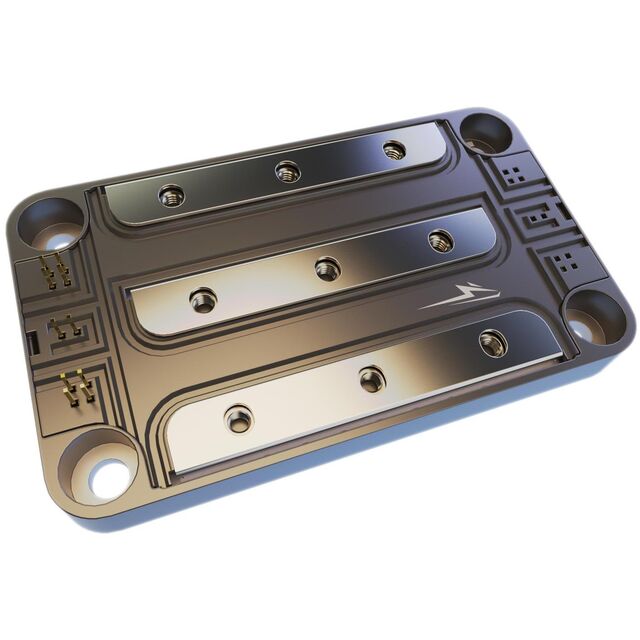

CAB760M12HM3R

Active

Wolfspeed

TRANS MOSFET N-CH SIC 1.2KV 1.015KA 13-PIN

Search across all available documentation for this part.

Active

Wolfspeed

TRANS MOSFET N-CH SIC 1.2KV 1.015KA 13-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	CAB760M12HM3R

Configuration	2 N-Channel (Half Bridge)
Current - Continuous Drain (Id) @ 25°C	1.015 kA
Drain to Source Voltage (Vdss)	1200 V
Drain to Source Voltage (Vdss)	1.2 kV
Gate Charge (Qg) (Max) @ Vgs	2724 nC
Input Capacitance (Ciss) (Max) @ Vds	79400 pF
Mounting Type	Chassis Mount
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	Module
Rds On (Max) @ Id, Vgs	1.73 mOhm
Supplier Device Package	Module
Technology	Silicon Carbide (SiC)
Vgs(th) (Max) @ Id	3.6 V

Part	Supplier Device Package	Vgs(th) (Max) @ Id	Configuration	Package / Case	Input Capacitance (Ciss) (Max) @ Vds	Technology	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs	Mounting Type	Rds On (Max) @ Id, Vgs	Operating Temperature [Min]	Operating Temperature [Max]	Drain to Source Voltage (Vdss)	Drain to Source Voltage (Vdss)
Wolfspeed CAB760M12HM3R	Module	3.6 V	2 N-Channel (Half Bridge)	Module	79400 pF	Silicon Carbide (SiC)	1.015 kA	2724 nC	Chassis Mount	1.73 mOhm	-40 C	175 °C	1200 V	1.2 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2820.66

General part information

Mosfet Array 1200V (1.2kV) 1.015kA (Tc) Chassis Mount Module
