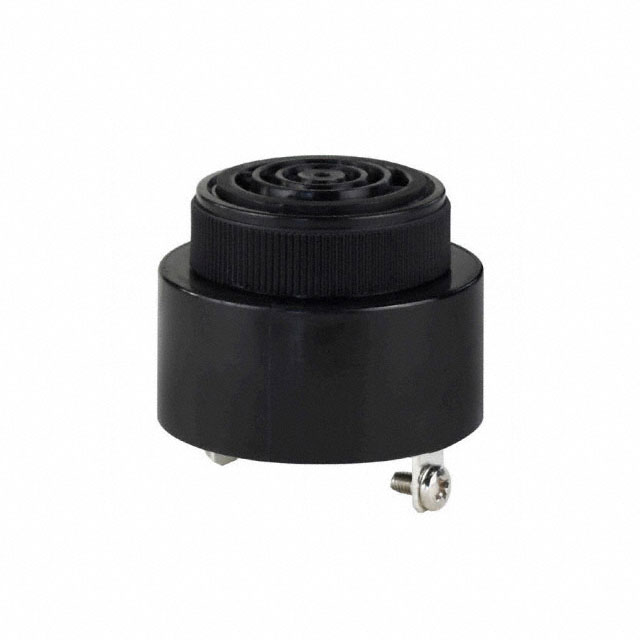

CPI-4232-72FST

Active

CUI Devices

AUDIO BUZZER PIEZO 6VDC 28VDC 6MA 12VDC 68DB 2300HZ TO 3300HZ PANEL MOUNT SCREW CARTON

Search across all available documentation for this part.

Active

CUI Devices

AUDIO BUZZER PIEZO 6VDC 28VDC 6MA 12VDC 68DB 2300HZ TO 3300HZ PANEL MOUNT SCREW CARTON

Technical Specifications

Parameters and characteristics for this part

Specification	CPI-4232-72FST

Current - Supply [Max]	15 mA
Current - Supply [Min]	2 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.8 kHz
Height - Seated (Max) [Max] [z]	1.28 in
Height - Seated (Max) [Max] [z]	32.5 mm
Input Type	DC
Operating Mode	Pulse, Fast
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Port Location	Top
Size / Dimension [diameter]	42.5 mm
Size / Dimension [diameter]	1.673 in
Sound Pressure Level (SPL)	80 dB
Technology	Piezo
Termination	6.5 mm
Termination	0.256 "
Termination	Screw Terminal, Quick Connect Tab
Voltage - Rated	12 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	6 VDC

Part	Sound Pressure Level (SPL)	Termination	Termination	Termination	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Driver Circuitry	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Current - Supply [Max]	Current - Supply [Min]	Frequency	Port Location	Duration	Input Type	Operating Mode	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Range [Min]	Voltage Range [Max]
CUI Devices CPI-4232-70ST	78 dB	6.5 mm	0.256 "	Screw Terminal Quick Connect Tab	12 VDC	42.5 mm	1.673 in	Indicator Internally Driven	Piezo	-30 ░C	85 °C	12 mA	4 mA	2.9 kHz	Top	2 Sec	DC	Chime	1.28 in	32.5 mm	6 VDC	16 V
CUI Devices CPI-4232C-120	95 dB	6.5 mm	0.256 "	Screw Terminal Quick Connect Tab	12 VDC	42.5 mm	1.673 in	Indicator Internally Driven	Piezo	-30 ░C	85 °C	24 mA	8 mA	2.9 kHz	Top		DC	Single Tone	1.299 in	33 mm	8 VDC	18 VDC
CUI Devices CPI-4232-72FST	80 dB	6.5 mm	0.256 "	Screw Terminal Quick Connect Tab	12 VDC	42.5 mm	1.673 in	Indicator Internally Driven	Piezo	-30 ░C	85 °C	15 mA	2 mA	2.8 kHz	Top		DC	Fast Pulse	1.28 in	32.5 mm	6 VDC	28 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Indicator, Internally Driven Piezo 12 V 2 ~ 15mA 2.8kHz 80dB @ 28V, 60cm Panel Mount Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)
