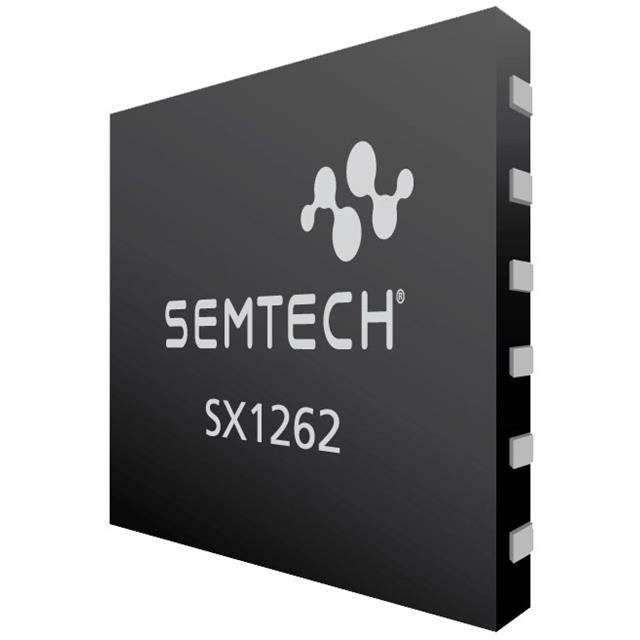

SX1262IMLTRT
ActiveSemtech Corporation
LONG RANGE LOW POWER LORA TRANSCEIVER ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
SX1262IMLTRT
ActiveSemtech Corporation
LONG RANGE LOW POWER LORA TRANSCEIVER ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | SX1262IMLTRT |
|---|---|
| Current - Receiving [Max] | 10.1 mA |
| Current - Receiving [Min] | 4.2 mA |
| Current - Transmitting [Max] | 118 mA |
| Current - Transmitting [Min] | 32 mA |
| Data Rate (Max) | 300 kbps |
| Frequency [Max] | 960 MHz |
| Frequency [Min] | 150 MHz |
| Modulation | GFSK, FSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-VFQFN Exposed Pad |
| Power - Output | 22 dBm |
| Protocol | LoRaWAN |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -148 dBm |
| Serial Interfaces | SPI |
| Supplier Device Package | 24-QFN (4x4) |
| Type | TxRx Only |
| Voltage - Supply [Max] | 3.7 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.99 | |
| 10 | $ 7.33 | |||
| 25 | $ 6.66 | |||
| 100 | $ 5.99 | |||
| 250 | $ 5.49 | |||
| 500 | $ 4.99 | |||
| 1000 | $ 4.49 | |||
| Digi-Reel® | 1 | $ 7.99 | ||
| 10 | $ 7.33 | |||
| 25 | $ 6.66 | |||
| 100 | $ 5.99 | |||
| 250 | $ 5.49 | |||
| 500 | $ 4.99 | |||
| 1000 | $ 4.49 | |||
| Tape & Reel (TR) | 3000 | $ 4.33 | ||
Description
General part information
SX1262 Series
IC RF TxRx Only General ISM < 1GHz LoRaWAN 150MHz ~ 960MHz 24-VFQFN Exposed Pad
