RF / COAXIAL CONNECTOR, SMA COAXIAL, RIGHT ANGLE PLUG, SOLDER, 50 OHM, RG174, RG188, BRASS
Deep-Dive with AI
Search across all available documentation for this part.
901-9872
ActiveAmphenol RF
RF / COAXIAL CONNECTOR, SMA COAXIAL, RIGHT ANGLE PLUG, SOLDER, 50 OHM, RG174, RG188, BRASS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 901-9872 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | 188, 188A, 316, LMR-100, M17/119-RG174, RG-174 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Includes | 1 End Cap, 1 Heat Shrink, 1 Contact, 1 Ferrule, 1 Connector |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 375 V |
901-98 Series
| Part | Impedance | Number of Ports | Body Material | Center Contact Plating | Frequency - Max [Max] | Cable Group | Cable Group [Min] | Cable Group [Max] | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Termination | Connector Type | Housing Color | Connector Style | Shield Termination | Center Contact Material | Mating Cycles | Mounting Type | Mounting Feature | Includes | Ingress Protection | Voltage Rating | Cable Group | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | 50 Ohms | 1 | Stainless Steel | Gold | 18 GHz | RG-405 Semi Rigid | 0.085 in | 0.086 in | Gold; Passivated | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Solder | Male Pin Plug | Gold Silver | SMA | Solder | Beryllium Copper | 500 | Free Hanging (In-Line) | ||||||
Amphenol RF | 50 Ohms | 1 | Brass | Gold | 12.4 GHz | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Solder | Female Socket Jack | Gold | SMA | Crimp | Beryllium Copper | 500 | Bulkhead - Front Side Nut | 1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Lockwasher 1 Nut | Weatherproof | 375 V | |||||
Amphenol RF | 50 Ohms | 1 | Brass | Gold | 18 GHz | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Solder | Male Pin Plug | Gold | SMA | Solder | Brass | 500 | Free Hanging (In-Line) | Connector Contact Insulator | ||||||||
Amphenol RF | 50 Ohms | 1 | Stainless Steel | Gold | 12.4 GHz | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Crimp | Jack Male Pin | Gold | RP-SMA | Crimp | Beryllium Copper | 500 | Bulkhead - Front Side Nut | 1 Connector 1 Nut | 375 V | ||||||
Amphenol RF | 50 Ohms | 1 | Brass | Gold | 12.4 GHz | RG-55 | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Solder | Male Pin Plug | Gold | SMA | Crimp | Brass | 500 | Free Hanging (In-Line) | 1 Connector 1 Contact 1 Ferrule | 500 V | 142 223 400 | |||||
Amphenol RF | 50 Ohms | 1 | Brass | Gold | 12.4 GHz | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Nickel | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Solder | Male Pin Plug | Silver | SMA | Crimp | Brass | 500 | Free Hanging (In-Line) | 1 Connector 1 Contact 1 Ferrule | 500 V | ||||||
Amphenol RF | 50 Ohms | 1 | Brass | Gold | 18 GHz | Nickel | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Solder Cup | Female Socket Receptacle | Silver | SMA | Solder | Beryllium Copper | 500 | Flange | |||||||||
Amphenol RF | 50 Ohms | 1 | Brass | Gold | 18 GHz | Nickel | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Solder | Female Socket Receptacle | Silver | SMA | Solder | Beryllium Copper | 500 | Flange | Extended Insulation | ||||||||
Amphenol RF | 50 Ohms | 1 | Brass | Gold | 18 GHz | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Solder | Male Pin Plug | Gold | SMA | Solder | Brass | 500 | Through Hole | Weatherproof | ||||||||
Amphenol RF | 50 Ohms | 1 | Brass | Gold | 12.4 GHz | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Solder | Male Pin Plug | Gold | SMA | Crimp | Brass | 500 | Free Hanging (In-Line) Right Angle | 1 Connector 1 Contact 1 End Cap 1 Ferrule 1 Heat Shrink | 375 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
901-98 Series

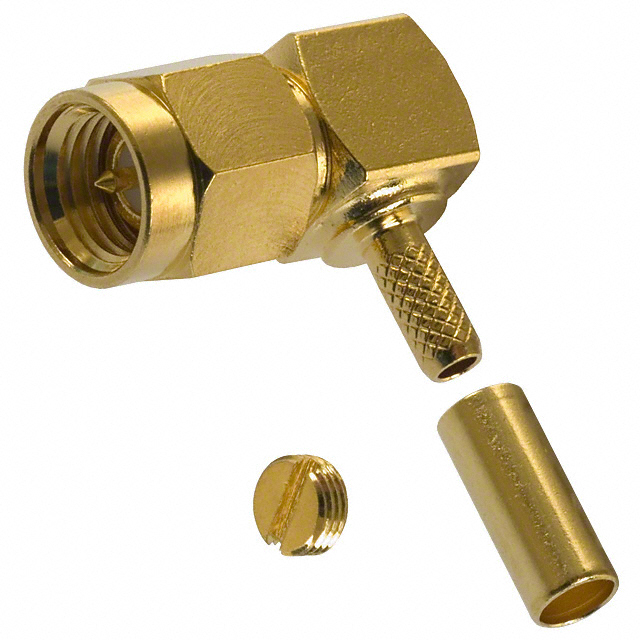

The 901-9872 is a crimp SMA Right Angle Plug for use with LMR-100, M17/119-RG174, RG174, RG188, RG188A and RG316 RF coaxial cables. It has gold-plated brass body with contacts and a PTFE insulator.
