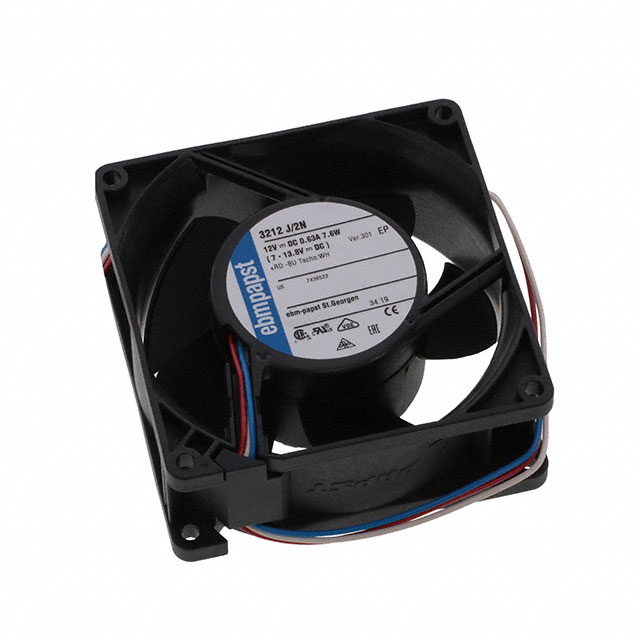

3212J/2N-301

Active

ebm-papst Inc.

DC FAN, AXIAL CONSTRUCTION, 0.63A, 12V, 7.5W,

Search across all available documentation for this part.

Active

ebm-papst Inc.

DC FAN, AXIAL CONSTRUCTION, 0.63A, 12V, 7.5W,

Technical Specifications

Parameters and characteristics for this part

Specification	3212J/2N-301

Air Flow	76.5 CFM
Air Flow	2.14 mł/min
Approval Agency	UL, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	51 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	7.5 W
RPM	6000 RPM
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Width [y]	38 mm

Part	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Width [y]	Voltage - Rated	Power (Watts)	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Lifetime @ Temp.	Bearing Type	Weight	Weight	Approval Agency	Termination	Air Flow	Air Flow	RPM	Fan Type	Current Rating (Amps)	Material - Blade
ebm-papst Inc. 3212J/2H4P	13.8 VDC	6 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	38 mm	12 VDC	50 W	76 dB(A)	-20 °C	70 °C	-20 C	70 °C	PWM Control Speed Sensor (Tach)	60000 Hrs	Ball	0.62 lb	281.23 g	CSA UL VDE	4 Wire Leads	4.62 mł/min	165 CFM	13000 RPM	Tubeaxial	4.2 A	Fiberglass Reinforced Nylon Polyamide (PA)
ebm-papst Inc. 3212JH4	13.8 VDC	6 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	38 mm	12 VDC	50 W	73 dB(A)	-20 °C	70 °C	-20 C	70 °C		60000 Hrs	Ball	0.617 lb	279.87 g	CSA UL VDE	2 Wire Leads	4.62 mł/min	165 CFM	13000 RPM	Tubeaxial		Fiberglass Reinforced Nylon Polyamide (PA)
ebm-papst Inc. 3212J/2N-301	13.8 VDC	7 V	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	38 mm	12 VDC	7.5 W	51 dB(A)	-20 °C	70 °C	-20 C	70 °C	Locked Rotor Protection Speed Sensor (Tach)	70000 Hrs	Ball			CSA UL VDE	3 Wire Leads	2.14 mł/min	76.5 CFM	6000 RPM	Tubeaxial		Fiberglass Reinforced Nylon Polyamide (PA)
ebm-papst Inc. 3212JH				38 mm	12 VDC	9 W	55 dB	-20 °C	70 °C	-20 C	70 °C		70000 Hrs	Ball	0.529 lb	239.95 g	CSA UL VDE	2 Wire Leads	2.41 m³/min	86 CFM	6800 RPM	Tubeaxial		Fiberglass Reinforced Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 76.5 CFM (2.14m³/min) 3 Wire Leads
