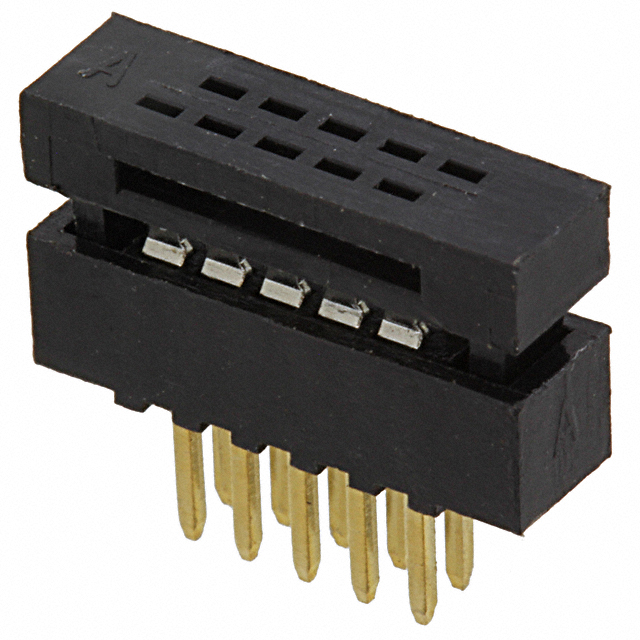

3240-10-00
ActiveCnC Tech, LLC
CONN DIP PLG IDC 10POS VERT
Deep-Dive with AI
Search across all available documentation for this part.
3240-10-00
ActiveCnC Tech, LLC
CONN DIP PLG IDC 10POS VERT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3240-10-00 |
|---|---|
| Board-Side Pitch | 1.27 mm |
| Board-Side Pitch | 0.05 in |
| Cable Pitch [custom] | 0.64 mm |
| Cable Pitch [custom] | 0.025 in |
| Cable Termination | IDC |
| Connector Type | Ribbon Cable, DIP Header |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Feed Through |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Row Spacing | 0.05 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.90 | |
| 10 | $ 1.65 | |||
| 25 | $ 1.58 | |||
| 40 | $ 1.55 | |||
| 80 | $ 1.48 | |||
| 230 | $ 1.34 | |||
| 440 | $ 1.24 | |||
Description
General part information
3240-10 Series
10 Position Ribbon Cable, DIP Header Connector IDC Through Hole
