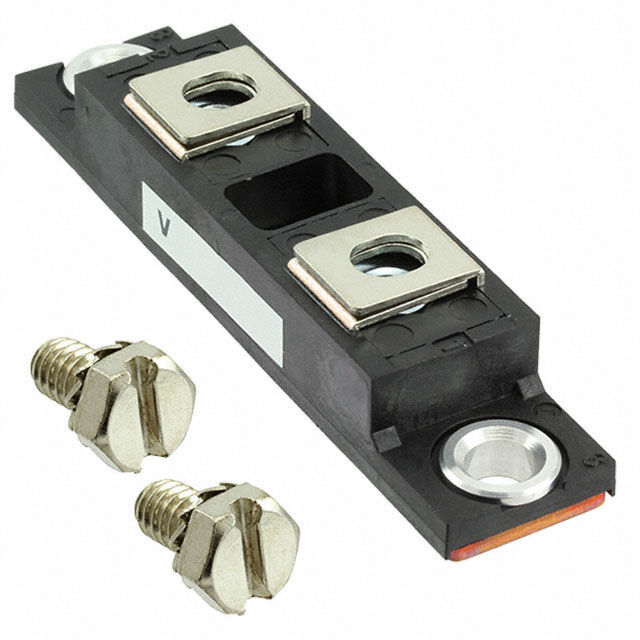

VS-VSUD400CW20

Active

Vishay General Semiconductor - Diodes Division

DIODE MOD GP 200V 480A TO-244AB

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

DIODE MOD GP 200V 480A TO-244AB

Technical Specifications

Parameters and characteristics for this part

Specification	VS-VSUD400CW20

Current - Average Rectified (Io) (per Diode)	480 A
Current - Reverse Leakage @ Vr	1.5 mA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	TO-244AB
Reverse Recovery Time (trr)	87 ns
Speed	200 mA, 500 ns
Supplier Device Package	TO-244AB
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	1.14 V

Part	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Supplier Device Package	Current - Average Rectified (Io) (per Diode)	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Diode Configuration	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Reverse Recovery Time (trr)	Technology	Current - Reverse Leakage @ Vr
Vishay General Semiconductor - Diodes Division VS-VSUD400CW20	-40 °C	175 ░C	TO-244AB	480 A	Chassis Mount	1.14 V	1 Pair Common Cathode	200 mA 500 ns	200 V	TO-244AB	87 ns	Standard	1.5 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Cathode 200 V 480A Chassis Mount TO-244AB

Technical documentation and resources

No documents available
