TRN 3-0522

Active

Traco Power

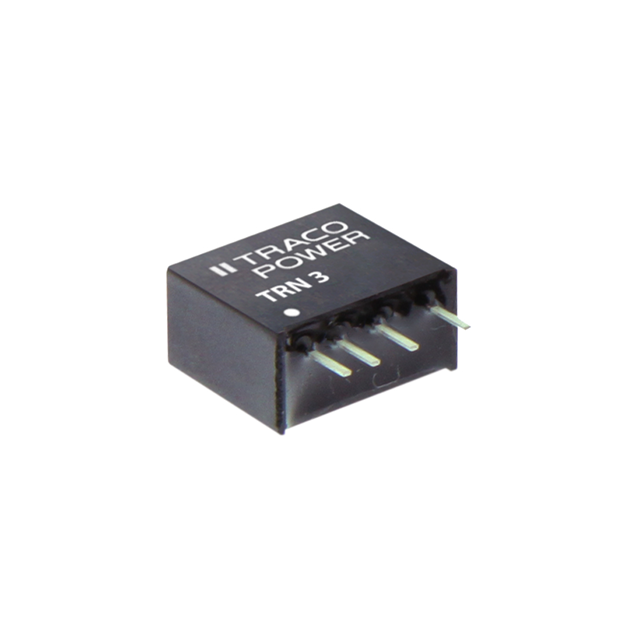

DC DC CONVERTER +/-12V 3W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TRN 3-0522

Active

Traco Power

DC DC CONVERTER +/-12V 3W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TRN 3-0522

Applications	ITE (Commercial)
Current - Output (Max)	125 mA
Current - Output (Max)	125 mA
Efficiency	80 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	5-SIP Module
Power (Watts)	3 W
Size / Dimension [x]	11.9 mm
Size / Dimension [x]	0.47 in
Size / Dimension [y]	7.7 mm
Size / Dimension [y]	0.3 "
Size / Dimension [z]	0.43 "
Size / Dimension [z]	11 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	13.2 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

TRN 3 Series

Isolated DC/DC Converters - Through Hole

Part	Voltage - Isolation	Features	Applications	Current - Output (Max) [Max]	Power (Watts)	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Type	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Output 2	Current - Output (Max)	Efficiency	Current - Output (Max)	Current - Output (Max)
Traco Power TRN 3-4815SM	1.6 kV	SCP	ITE (Commercial)	125 mA	3 W	Surface Mount	36 V	24 V	85 °C	-40 °C	11.9 mm	0.47 in	11.3 mm	8 mm	0.31 in	0.44 in	7-SMD Module 6 Leads	Isolated Module	75 V	1
Traco Power TRN 3-1221	1.6 kV	SCP	ITE (Commercial)		3 W	Through Hole	9 V	5 V	85 °C	-40 °C	11.9 mm	0.47 in	7.7 mm	11 mm	0.43 "	0.3 "	5-SIP Module	Isolated Module	18 V	2	-5 V	300 mA	78 %
Traco Power TRN 3-1213SM	1.6 kV	SCP	ITE (Commercial)	200 mA	3 W	Surface Mount	9 V	15 V	85 °C	-40 °C	11.9 mm	0.47 in	11.3 mm	8 mm	0.31 in	0.44 in	7-SMD Module 6 Leads	Isolated Module	18 V	1			83 %
Traco Power TRN 3-1210SM	1.6 kV	SCP	ITE (Commercial)	700 mA	2.3 W	Surface Mount	9 V	3.3 V	85 °C	-40 °C	11.9 mm	0.47 in	11.3 mm	8 mm	0.31 in	0.44 in	7-SMD Module 6 Leads	Isolated Module	18 V	1			76 %
Traco Power TRN 3-4813SM	1.6 kV	SCP	ITE (Commercial)	200 mA	3 W	Surface Mount	36 V	15 V	85 °C	-40 °C	11.9 mm	0.47 in	11.3 mm	8 mm	0.31 in	0.44 in	7-SMD Module 6 Leads	Isolated Module	75 V	1			83 %
Traco Power TRN 3-0522	1.6 kV	SCP	ITE (Commercial)		3 W	Through Hole	4.5 V	12 V	85 °C	-40 °C	11.9 mm	0.47 in	7.7 mm	11 mm	0.43 "	0.3 "	5-SIP Module	Isolated Module	13.2 V	2	-12 V		80 %	125 mA	125 mA
Traco Power TRN 3-0511	1.6 kV	SCP	ITE (Commercial)	600 mA	3 W	Through Hole	4.5 V	5 V	85 °C	-40 °C	11.9 mm	0.47 in	7.7 mm	11 mm	0.43 "	0.3 "	5-SIP Module 4 Leads	Isolated Module	13.2 V	1			78 %
Traco Power TRN 3-4812SM	1.6 kV	SCP	ITE (Commercial)	250 mA	3 W	Surface Mount	36 V	12 V	85 °C	-40 °C	11.9 mm	0.47 in	11.3 mm	8 mm	0.31 in	0.44 in	7-SMD Module 6 Leads	Isolated Module	75 V	1			83 %
Traco Power TRN 3-2410	1.6 kV	SCP	ITE (Commercial)	700 mA	2.3 W	Through Hole	18 V	3.3 V	85 °C	-40 °C	11.9 mm	0.47 in	7.7 mm	11 mm	0.43 "	0.3 "	5-SIP Module 4 Leads	Isolated Module	36 V	1			76 %
Traco Power TRN 3-4813	1.6 kV	SCP	ITE (Commercial)	200 mA	3 W	Through Hole	36 V	15 V	85 °C	-40 °C	11.9 mm	0.47 in	7.7 mm	11 mm	0.43 "	0.3 "	5-SIP Module 4 Leads	Isolated Module	75 V	1			83 %
