PL20-5A

Active

Cinch Connectivity Solutions Trompeter

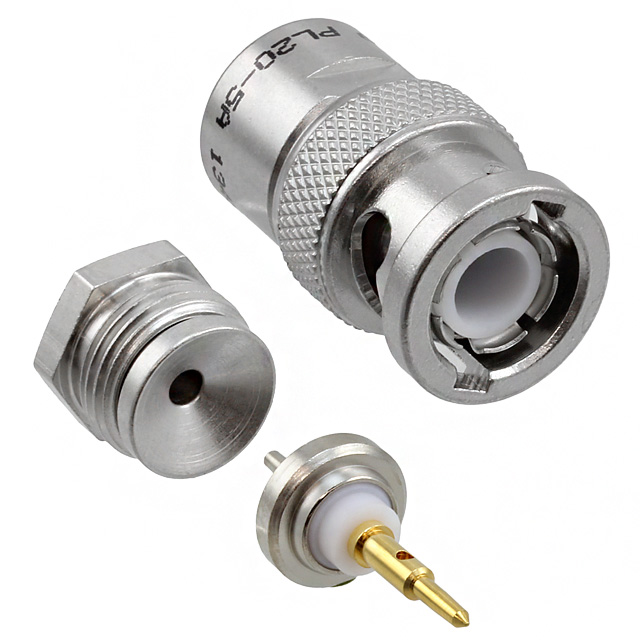

CONN BNC PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PL20-5A

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-196
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Wrench Clamp
Voltage Rating	500 V

Part	Voltage Rating	Body Material	Contact Termination	Number of Ports	Cable Group	Housing Color	Frequency - Max [Max]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Impedance	Body Finish	Center Contact Plating	Mounting Type	Fastening Type	Shield Termination	Dielectric Material
Cinch Connectivity Solutions Trompeter PL20-5A	500 V	Brass	Solder	1	RG-196	Silver	4 GHz	Male Pin Plug	-65 ░C	165 °C	BNC	50 Ohms	Nickel	Gold	Free Hanging (In-Line)	Bayonet Lock	Wrench Clamp	Polytetrafluoroethylene (PTFE)
Cinch Connectivity Solutions Trompeter PL20-3	500 V	Brass	Solder	1	RG-223	Silver	4 GHz	Male Pin Plug	-65 ░C	165 °C	BNC	50 Ohms	Nickel	Gold	Free Hanging (In-Line)	Bayonet Lock	Wrench Clamp	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
