LHD-03-TS

Active

Adam Tech

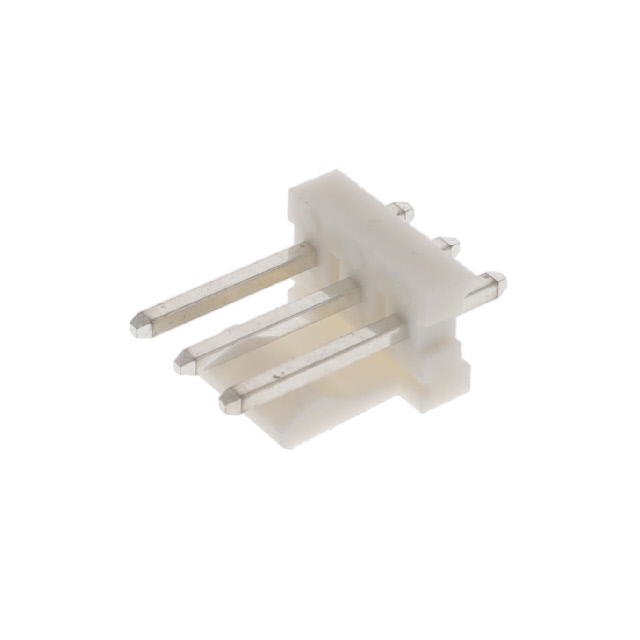

CONN HEADER VERT 3POS 3.96MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 3POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHD-03-TS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.448 in
Contact Length - Mating	11.38 mm
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	7 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height	0.425 in
Insulation Height	10.8 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length [x]	0.715 "
Overall Contact Length [x]	18.16 mm
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Number of Rows	Current Rating (Amps)	Insulation Color	Contact Shape	Style	Contact Type	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Fastening Type	Contact Length - Post	Contact Length - Post	Connector Type	Termination	Insulation Height	Insulation Height	Shrouding	Contact Finish - Post	Mounting Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Overall Contact Length [x]	Overall Contact Length [x]
Adam Tech LHD-03-TS	All	0.156 in	3.96 mm	1	7 A	White	Square	Board to Cable/Wire	Male Pin	0.448 in	11.38 mm	UL94 V-2	Friction Lock	3.6 mm	0.142 in	Header	Solder	0.425 in	10.8 mm	Shrouded - 1 Wall	Tin	Through Hole	Brass	-40 °C	105 ░C	Polyamide (PA66) Nylon 6/6	0.715 "	18.16 mm
