CC45SL3JD220JYNNA

Active

EPCOS - TDK Electronics

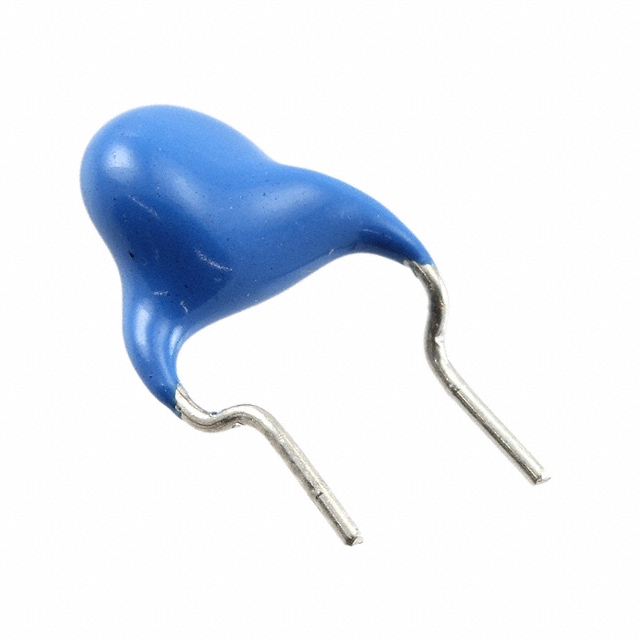

CAPACITOR: CERAMIC; 22PF; 6KV; ±5%; THT; 7.5MM; BODY DIM: Ø7.5X6MM

Search across all available documentation for this part.

Active

EPCOS - TDK Electronics

CAPACITOR: CERAMIC; 22PF; 6KV; ±5%; THT; 7.5MM; BODY DIM: Ø7.5X6MM

Technical Specifications

Parameters and characteristics for this part

Specification	CC45SL3JD220JYNNA

Applications	General Purpose
Capacitance	22 pF
Features	Low Dissipation Factor, High Voltage
Height - Seated (Max) [Max]	0.453 "
Height - Seated (Max) [Max]	11.5 mm
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lead Style	Formed Leads - Kinked
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-25 °C
Package / Case	Disc, Radial
Size / Dimension [diameter]	0.295 in
Size / Dimension [diameter]	7.5 mm
Temperature Coefficient	SL
Tolerance	5 %
Voltage - Rated	6000 V
Voltage - Rated	6 kV

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features	Temperature Coefficient	Voltage - Rated	Voltage - Rated	Lead Style	Capacitance	Lead Spacing	Lead Spacing
EPCOS - TDK Electronics CC45SL3JD220JYNNA	125 °C	-25 °C	Disc Radial	5 %	0.295 in	7.5 mm	General Purpose	Through Hole	0.453 "	11.5 mm	High Voltage Low Dissipation Factor	SL	6000 V	6 kV	Formed Leads - Kinked	22 pF	7.5 mm	0.295 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 pF ±5% 6000V (6kV) Ceramic Capacitor SL Radial, Disc
