APT13003EU-E1

Obsolete

Diodes Inc

INACTIVE DATASHEET ARCHIVE

Search across all available documentation for this part.

Obsolete

Diodes Inc

INACTIVE DATASHEET ARCHIVE

Technical Specifications

Parameters and characteristics for this part

Specification	APT13003EU-E1

Current - Collector (Ic) (Max) [Max]	1.5 A
Current - Collector Cutoff (Max) [Max]	10 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	15 hFE
Frequency - Transition	4 MHz
Grade	Automotive
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C

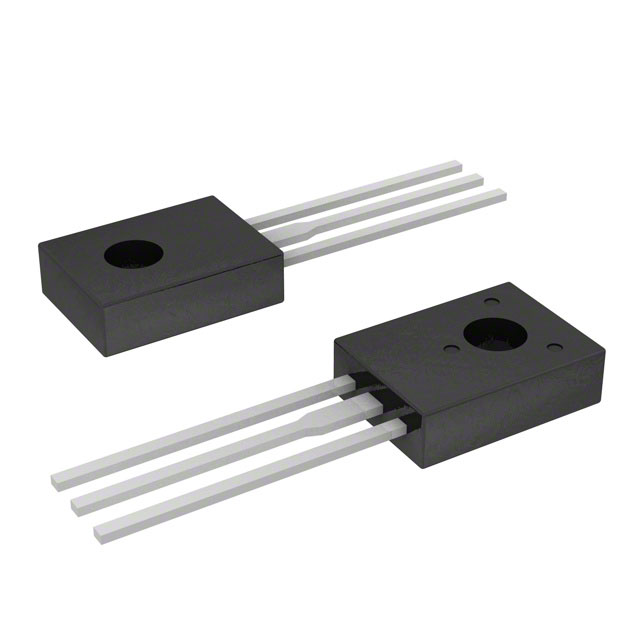

Package / Case	TO-225AA, TO-126-3
Power - Max [Max]	1.1 W
Qualification	AEC-Q101
Supplier Device Package	TO-126
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic [Max]	400 mV
Voltage - Collector Emitter Breakdown (Max)	465 V

Inactive Datasheet Archive

Part	Package / Case	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max)	Supplier Device Package	Power - Max [Max]	Mounting Type	Transistor Type	Vce Saturation (Max) @ Ib, Ic	Frequency - Transition	Current - Collector (Ic) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Vce Saturation (Max) @ Ib, Ic [Max]	Grade	Current - Collector Cutoff (Max) [Max]	Qualification
Diodes Inc APT13003SZTR-G1	TO-226-3 TO-92-3	5	450 V	TO-92	1.1 W	Through Hole	NPN	1.2 V	4 MHz	1.3 A	150 °C	-65 °C
Diodes Inc APT13003SU-G1	TO-126-3 TO-225AA	5	450 V	TO-126	20 W	Through Hole	NPN	1.2 V	4 MHz	1.3 A	150 °C	-65 °C
Diodes Inc APT13003HZTR-G1	TO-226-3 TO-92-3	13	465 V	TO-92	1.1 W	Through Hole	NPN		4 MHz	1.5 A	150 °C	-65 °C	400 mV
Diodes Inc APT13003DU-G1	TO-126-3 TO-225AA	5	450 V	TO-126	20 W	Through Hole	NPN		4 MHz	1.5 A	150 °C	-65 °C	400 mV
Diodes Inc APT13003EU-G1	TO-126-3 TO-225AA	13	465 V	TO-126	20 W	Through Hole	NPN		4 MHz	1.5 A	150 °C	-65 °C	400 mV
Diodes Inc APT13003LZTR-G1	TO-226-3 TO-92-3	6 hFE	450 V	TO-92	800 mW	Through Hole	NPN	500 mV		800 mA	150 °C	-55 °C
Diodes Inc APT13003HU-G1	TO-126-3 TO-225AA	13	465 V	TO-126	20 W	Through Hole	NPN		4 MHz	1.5 A	150 °C	-65 °C	400 mV
Diodes Inc APT13003EU-E1	TO-126-3 TO-225AA	15 hFE	465 V	TO-126	1.1 W	Through Hole	NPN		4 MHz	1.5 A	150 °C	-65 °C	400 mV	Automotive	10 µA	AEC-Q101
Diodes Inc APT13003NZTR-G1	TO-226-3 TO-92-3	5	900 V	TO-92	1 W	Through Hole	NPN		4 MHz	1.5 A	150 °C	-55 °C	400 mV
Diodes Inc APT13003EZTR-G1	TO-226-3 TO-92-3	13	465 V	TO-92	1.1 W	Through Hole	NPN		4 MHz	1.5 A	150 °C	-65 °C	400 mV
