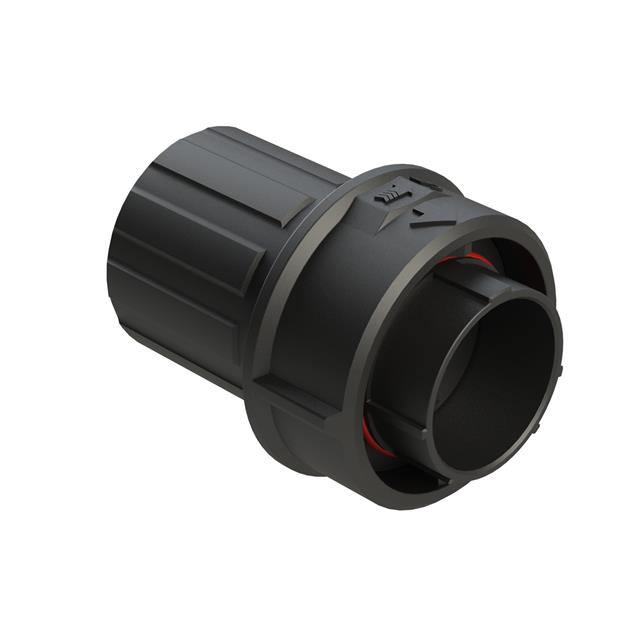

FLS614N4PHEC03

Active

Amphenol Sine Systems Corp

4 POSITION PLUG, PIN, SHELL SIZE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

4 POSITION PLUG, PIN, SHELL SIZE

Technical Specifications

Parameters and characteristics for this part

Specification	FLS614N4PHEC03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	12
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection	IP69K, IP68, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Size - Insert [Max]	14
Shell Size - Insert [Min]	4
Shielding	Unshielded
Type	For Male Pins

Part	Ingress Protection	Note	Contact Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Shielding	Housing Color	Contact Size	Insert Material	Primary Material	Fastening Type	Material Flammability Rating	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Number of Positions	Connector Type	Contact Shape	Orientation	Shell Size - Insert	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Amphenol Sine Systems Corp FLS614N19PHEC03	IP67 IP68 IP69K	Contacts Not Included	Crimp	Backshell Coupling Nut	125 °C	-40 °C	Free Hanging (In-Line)	For Male Pins	Unshielded	Black	20	Thermoplastic	Plastic	Bayonet Lock	UL94 V-0	19	14	19	Plug Housing	Circular	N
Amphenol Sine Systems Corp FLS614N8SHEC03	IP67 IP68 IP69K	Contacts Not Included	Crimp	Backshell Coupling Nut	125 °C	-40 °C	Free Hanging (In-Line)	For Female Sockets	Unshielded	Black	16	Thermoplastic	Plastic	Bayonet Lock	UL94 V-0			8	Plug Housing	Circular	N	14-8
Amphenol Sine Systems Corp FLS614N4PHEC03	IP67 IP68 IP69K	Contacts Not Included	Crimp	Backshell Coupling Nut	125 °C	-40 °C	Free Hanging (In-Line)	For Male Pins	Unshielded	Black	12	Thermoplastic	Plastic	Bayonet Lock	UL94 V-0			4	Plug Housing	Circular	N		4	14
Amphenol Sine Systems Corp FLS614N2SHEC03	IP67 IP68 IP69K	Contacts Not Included	Crimp	Backshell Coupling Nut	125 °C	-40 °C	Free Hanging (In-Line)	For Female Sockets	Unshielded	Black		Thermoplastic	Plastic	Bayonet Lock	UL94 V-0			4	Plug Housing	Circular	N		4	14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
