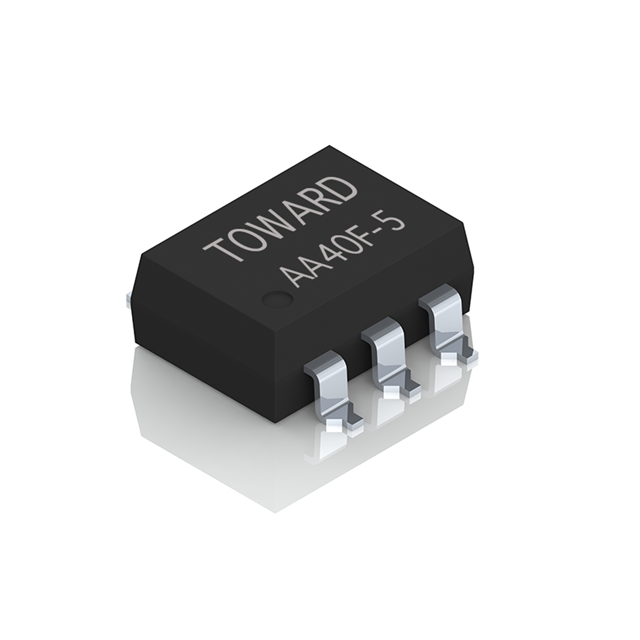

AA40F-5
ActiveBright Toward Industrial Co., Ltd.
SSR RELAY SPST-NO 45MA 0-1500V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AA40F-5
ActiveBright Toward Industrial Co., Ltd.
SSR RELAY SPST-NO 45MA 0-1500V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AA40F-5 |
|---|---|
| Load Current | 45 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 300 Ohm |
| Output Type | DC, AC |
| Package / Case | 7.62 mm |
| Package / Case | 0.3 in |
| Package / Case | 6-SMD |
| Supplier Device Package | 6-SMD |
| Termination Style | Gull Wing |
| Voltage - Input | 1.17 VDC |
| Voltage - Load [Max] | 1500 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.43 | |
| 10 | $ 5.62 | |||
| 25 | $ 5.33 | |||
| 50 | $ 5.11 | |||
| 100 | $ 4.91 | |||
| 250 | $ 4.65 | |||
| 500 | $ 4.47 | |||
| 1000 | $ 4.29 | |||
Description
General part information
AA40F Series
Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)
