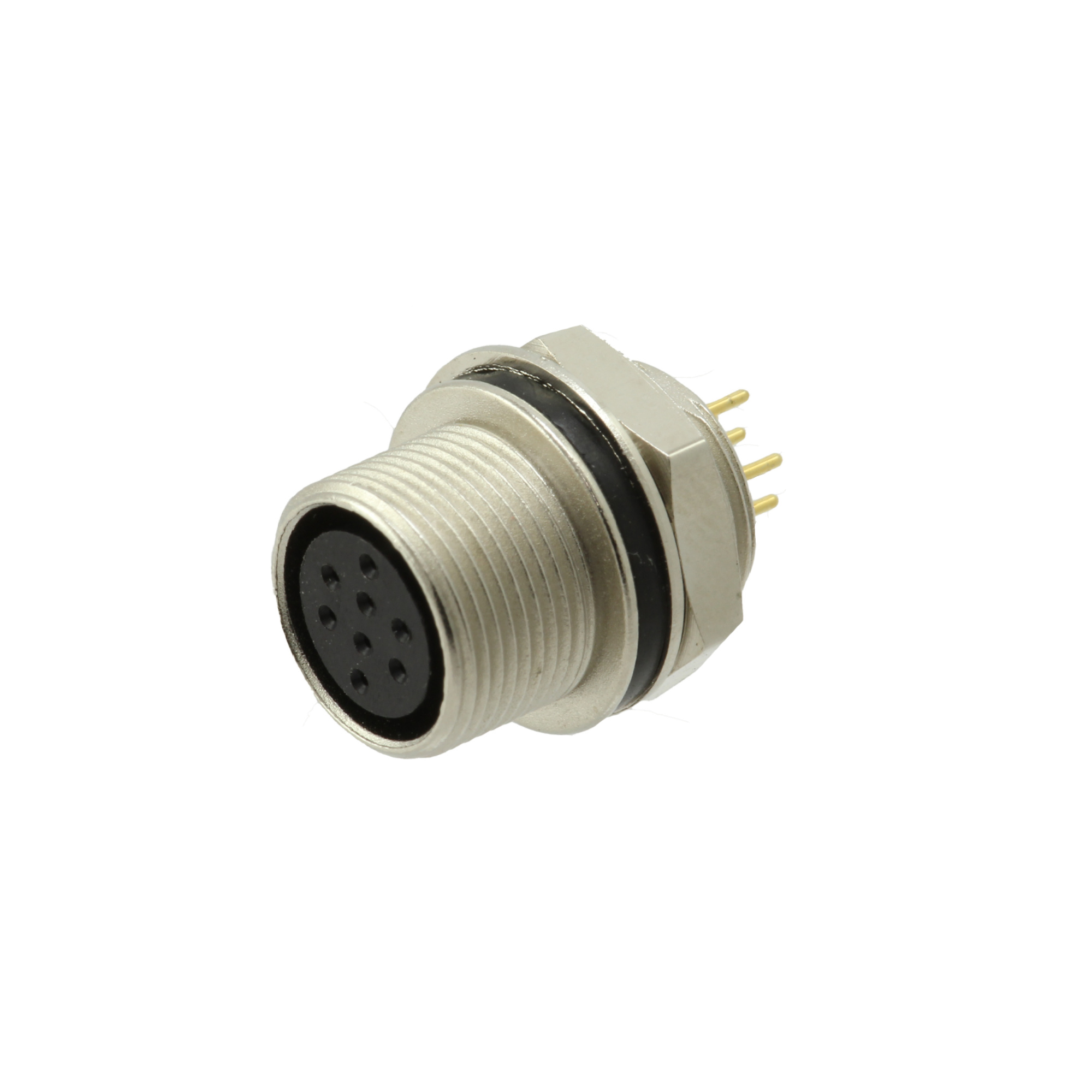

SD-PNL08-FFTRH-PX0-000

Active

Adam Tech

CONN RCPT FMALE 8POS GOLD SOLDER

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT FMALE 8POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SD-PNL08-FFTRH-PX0-000

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA46), Nylon 4/6
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	8
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shielding	Unshielded
Termination	Solder

Part	Connector Type	Shell Finish	Shell Material	Insert Material	Primary Material	Shielding	Orientation	Ingress Protection	Contact Finish Thickness - Mating	Termination	Contact Finish - Mating	Contact Material	Mounting Type	Number of Positions	Mounting Feature	Color
Adam Tech SD-PNL08-FFTRH-PX0-000	Receptacle Female Sockets	Nickel	Zinc Alloy	Polyamide (PA46) Nylon 4/6	Metal	Unshielded	Keyed	IP67 - Dust Tight Waterproof	Flash	Solder	Gold	Brass	Panel Mount Through Hole	8	Bulkhead - Rear Side Nut	Silver
