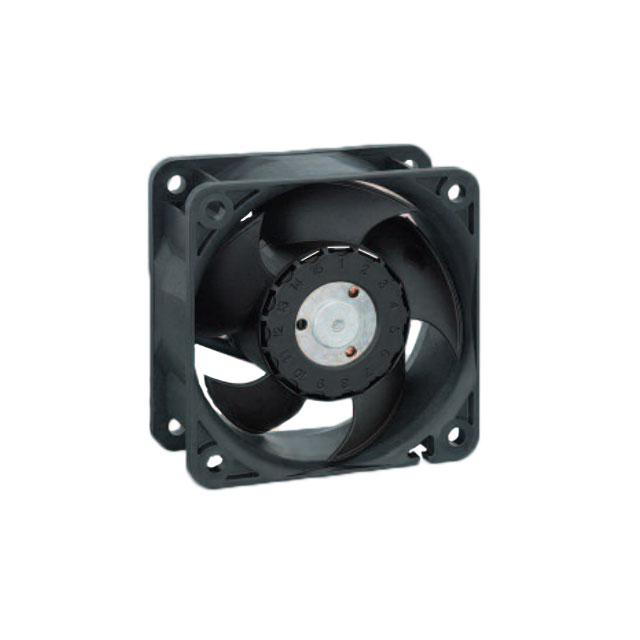

624/2HH

Active

ebm-papst Inc.

FAN AXIAL 60X25.4MM 24VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 60X25.4MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	624/2HH

Air Flow	0.924 mł/min
Air Flow	33 CFM
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	65000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	43 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	3.6 W
RPM	8200 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	18 VDC
Weight	0.187 lb
Weight	84.82 g
Width [y]	25.4 mm

Part	Features	Material - Blade	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Noise	Lifetime @ Temp.	RPM	Termination	Size / Dimension [x]	Size / Dimension [y]	Air Flow	Air Flow	Voltage - Rated	Width [y]	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Material - Frame	Weight	Weight
ebm-papst Inc. 624/2HH	Locked Rotor Protection Speed Sensor (Tach)	Fiberglass Reinforced Nylon Polyamide (PA)	-20 °C	70 °C	-20 C	70 °C	3.6 W	43 dB	65000 Hrs	8200 RPM	3 Wire Leads	60 mm	60 mm	0.924 mł/min	33 CFM	24 VDC	25.4 mm	Tubeaxial	18 VDC	28 VDC	Ball	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.187 lb	84.82 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 33.0 CFM (0.924m³/min) 3 Wire Leads
