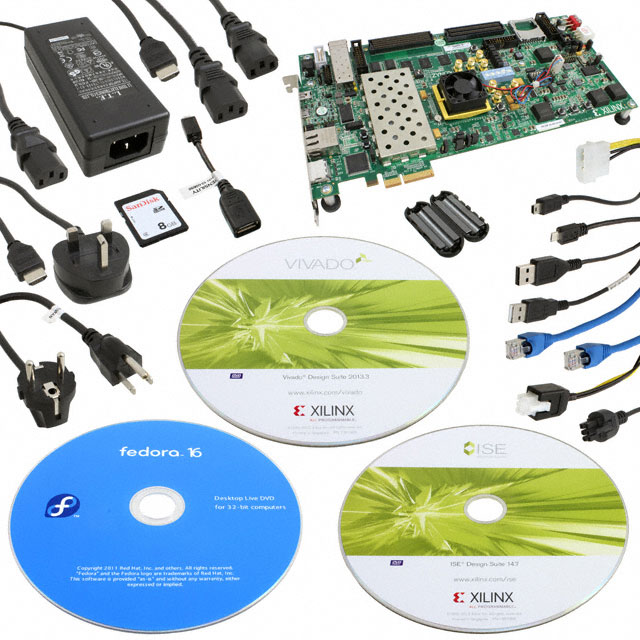

EK-Z7-ZC706-G

Obsolete

AMD

EVALUATION KIT ZYNQ-7000 ZC706

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EK-Z7-ZC706-G

Obsolete

AMD

EVALUATION KIT ZYNQ-7000 ZC706

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EK-Z7-ZC706-G

Contents	Power Supply, Cable(s), Accessories, Board(s)
For Use With/Related Products	XC7Z045
Interconnect System	FMC, Pmod
Platform	Zynq-7000 AP SoC ZC706 PCIe Card
Suggested Programming Environment	Vivado
Type	FPGA + MCU/MPU SoC
Utilized IC / Part	XC7Z045

XC7Z045 Series

Part	Core Processor	Primary Attributes	Peripherals	Speed	Supplier Device Package	Package / Case	Number of I/O	RAM Size	Operating Temperature [Max]	Operating Temperature [Min]	Connectivity	Architecture	Note	Type	Suggested Programming Environment	Utilized IC / Part	Contents	Interconnect System	For Use With/Related Products	Platform
AMD XC7Z045-L2FFG900I	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	350K Logic Cells Kintex™-7 FPGA	DMA	800 MHz	900-FCBGA (31x31)	900-BBGA FCBGA	130 I/O	256 KB	100 °C	-40 C	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	MCU FPGA
AMD XC7Z045-3FBG676E	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	350K Logic Cells Kintex™-7 FPGA	DMA	1 GHz	676-FCBGA (27x27)		130 I/O	256 KB	100 °C	0 °C	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	MCU FPGA
AMD XC7Z045-3FFG676E	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	350K Logic Cells Kintex™-7 FPGA	DMA	1 GHz	676-FCBGA (27x27)		130 I/O	256 KB	100 °C	0 °C	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	MCU FPGA
AMD EK-Z7-ZC706-G-J													J = Japan version does not ship with a power supply	FPGA + MCU/MPU SoC	Vivado	XC7Z045	Board(s) Cable(s) Accessories	FMC Pmod	XC7Z045	Zynq-7000 AP SoC ZC706 Japan PCIe Card
AMD EK-Z7-ZC706-G														FPGA + MCU/MPU SoC	Vivado	XC7Z045	Accessories Board(s) Cable(s) Power Supply	FMC Pmod	XC7Z045	Zynq-7000 AP SoC ZC706 PCIe Card
AMD XC7Z045-L2FBG676I	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	350K Logic Cells Kintex™-7 FPGA	DMA	800 MHz	676-FCBGA (27x27)		130 I/O	256 KB	100 °C	-40 C	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	MCU FPGA
AMD XC7Z045-2FFG676E	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	350K Logic Cells Kintex™-7 FPGA	DMA	800 MHz	676-FCBGA (27x27)		130 I/O	256 KB	100 °C	0 °C	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	MCU FPGA
AMD XC7Z045-2FBG676E	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	350K Logic Cells Kintex™-7 FPGA	DMA	800 MHz	676-FCBGA (27x27)		130 I/O	256 KB	100 °C	0 °C	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	MCU FPGA
AMD EK-Z7-ZC706-CES-G-J													J = Japan version does not ship with a power supply	FPGA + MCU/MPU SoC	Vivado	XC7Z045	Board(s) Cable(s) Accessories	FMC Pmod		Zynq-7000 AP SoC ZC706 CES Japan PCIe Card
AMD XC7Z045-2FFG900E	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	350K Logic Cells Kintex™-7 FPGA	DMA	800 MHz	900-FCBGA (31x31)	900-BBGA FCBGA	130 I/O	256 KB	100 °C	0 °C	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	MCU FPGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XC7Z045 Series

Zynq-7000 AP SoC ZC706 PCIe Card XC7Z045 Zynq®-7000 FPGA + MCU/MPU SoC Evaluation Board

Documents

Technical documentation and resources
