MAP130-1024G

Active

EOS Power India Private Ltd

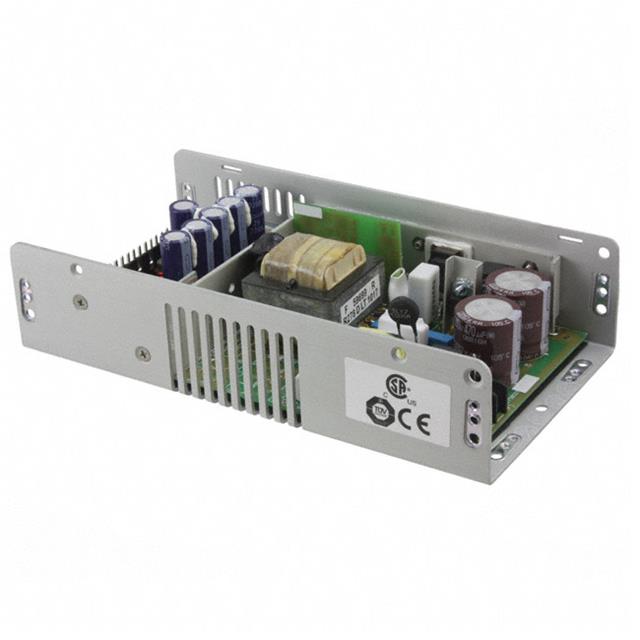

AC/DC POWER SUPPLY DUAL-OUT 24V/28V 6.25A/5.4A 130W 15-PIN

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC POWER SUPPLY DUAL-OUT 24V/28V 6.25A/5.4A 130W 15-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	MAP130-1024G

Applications	ITE (Commercial)
Approval Agency	cCSAus, CE, CB
Current - Output 1	6.2 A
Efficiency	80 %
Features	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	130 W
Size / Dimension [x]	215.9 mm
Size / Dimension [x]	8.5 in
Size / Dimension [y]	114.3 mm
Size / Dimension [y]	4.5 in
Size / Dimension [z]	2 "
Size / Dimension [z]	50.8 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC, 132 VAC
Voltage - Input [Min]	90 VAC, 175 VAC
Voltage - Isolation	2.6 kV
Voltage - Output 1	24 V

Part	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Minimum Load Required	Type	Efficiency	Voltage - Output 1	Voltage - Isolation	Mounting Type	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Output 1	Number of Outputs	Approval Agency	Applications	Power (Watts)	Current - Output 2	Voltage - Output 2	Current - Output 4	Voltage - Output 3	Voltage - Output 4
EOS Power India Private Ltd MAP130-1024G	132 VAC 264 VAC	90 VAC 175 VAC	70 °C	0 °C		Open Frame	80 %	24 V	2.6 kV	Chassis Mount	Adjustable Output Remote Sense Universal Input	2 "	114.3 mm	50.8 mm	215.9 mm	8.5 in	4.5 in	6.2 A	1	CB cCSAus CE	ITE (Commercial)	130 W
EOS Power India Private Ltd MAP130-4002G	132 VAC 264 VAC	90 VAC 175 VAC	70 °C	0 °C		Open Frame	80 %	5 V	2.6 kV	Chassis Mount	Adjustable Output Remote Sense Universal Input	2 "	114.3 mm	50.8 mm	215.9 mm	8.5 in	4.5 in	20 A	4	CB cCSAus CE	ITE (Commercial)	130 W	5 A	12 V	1 A	-12 V	12 V
