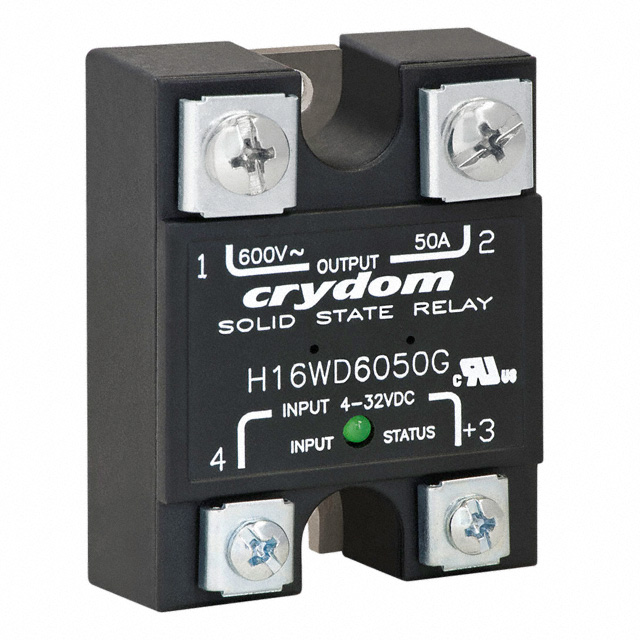

H16WD6050G

Active

Sensata-Crydom

SSR RELAY SPST-NO 50A 48-660V

Search across all available documentation for this part.

Active

Sensata-Crydom

SSR RELAY SPST-NO 50A 48-660V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Mounting Type	Package / Case	Termination Style	Voltage - Load [Min]	Voltage - Load [Max]	Load Current
Sensata-Crydom H16WD6050-10	-30 ░C	80 C	AC	32 V	4 V	CE UR	Chassis Mount	Hockey Puck	Screw Terminal	48 V	660 V	50 A
Sensata-Crydom H16WD6025G-10	-30 ░C	80 C	AC	32 V	4 V	CE UR	Chassis Mount	Hockey Puck	Screw Terminal	48 V	660 V	25 A
Sensata-Crydom H16WD6090G	-30 ░C	80 C	AC Zero Cross	32 V	4 V	CE UR	Chassis Mount	Hockey Puck	Screw Terminal	48 V	660 V	90 A
Sensata-Crydom H16WD6050G	-30 ░C	80 C	AC Zero Cross	32 V	4 V	CE UR	Chassis Mount	Hockey Puck	Screw Terminal	48 V	660 V	50 A
Sensata-Crydom H16WD6025G	-30 ░C	80 C	AC Zero Cross	32 V	4 V	CE UR	Chassis Mount	Hockey Puck	Screw Terminal	48 V	660 V	25 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Hockey Puck
