3240-16-00
ActiveCnC Tech, LLC

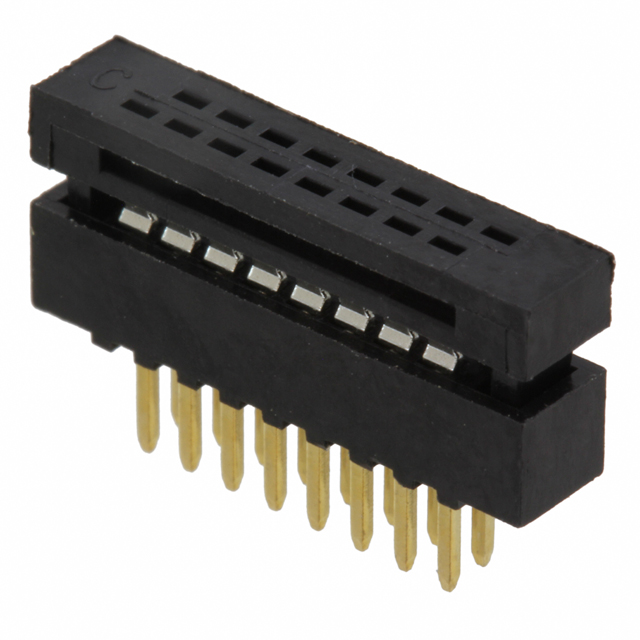

CONN IDC CONNECTOR SKT 16 POS 0.63MM IDT ST THRU-HOLE
Deep-Dive with AI
Search across all available documentation for this part.
3240-16-00
ActiveCnC Tech, LLC
CONN IDC CONNECTOR SKT 16 POS 0.63MM IDT ST THRU-HOLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3240-16-00 |
|---|---|
| Board-Side Pitch | 1.27 mm |
| Board-Side Pitch | 0.05 in |
| Cable Pitch [custom] | 0.64 mm |
| Cable Pitch [custom] | 0.025 in |
| Cable Termination | IDC |
| Connector Type | Ribbon Cable, DIP Header |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Feed Through |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Row Spacing | 0.05 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.97 | |
| 10 | $ 2.27 | |||
| 25 | $ 2.04 | |||
| 40 | $ 1.94 | |||
| 80 | $ 1.80 | |||
| 230 | $ 1.60 | |||
| 440 | $ 1.50 | |||
| 945 | $ 1.38 | |||
| 2400 | $ 1.38 | |||
Description
General part information
3240-16 Series
16 Position Ribbon Cable, DIP Header Connector IDC Through Hole
