IT9115-CUV8A

Active

Panduit Corp

CABLE TIE, IN-LINE, 15.3L (389MM) LIGHT-

Search across all available documentation for this part.

Active

Panduit Corp

CABLE TIE, IN-LINE, 15.3L (389MM) LIGHT-

Technical Specifications

Parameters and characteristics for this part

Part	Bundle Diameter	Bundle Diameter	Width	Width [x]	Material	Length - Actual [x]	Length - Actual [x]	Features	Length - Approximate	Color	Tensile Strength	Tensile Strength	Mounting Type
Panduit Corp IT9115-CUV5A	4.53 in	115.06 mm	8.89 mm	0.35 in	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm	UV Resistant	15.25 in	Green	124 lbs	56.25 kg	Free Hanging (In-Line)
Panduit Corp IT9115-CUV6A	4.53 in	115.06 mm	8.89 mm	0.35 in	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm	UV Resistant	15.25 in	Blue	124 lbs	56.25 kg	Free Hanging (In-Line)
Panduit Corp IT9115-CUV8A	4.53 in	115.06 mm	8.89 mm	0.35 in	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm	UV Resistant	15.25 in	Gray	124 lbs	56.25 kg	Free Hanging (In-Line)
Panduit Corp IT9115-CUV4Y	4.53 in	115.06 mm	8.89 mm	0.35 in	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm	UV Resistant	15.25 in	Yellow	124 lbs	56.25 kg	Free Hanging (In-Line)
Panduit Corp IT9115-CUV18	4.53 in	115.06 mm	8.89 mm	0.35 in	Polyamide (PA66) Nylon 6/6	1.27 ft	387 mm	UV Resistant	15.25 in	Tan	124 lbs	56.25 kg	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.99
Newark	Each	1000	$ 0.90

General part information

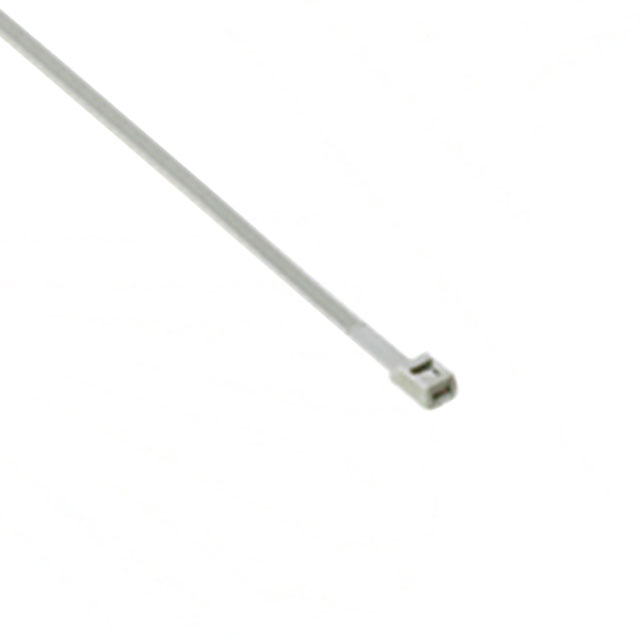

Cable Tie, Parallel Gray 4.53" (115.06mm) 0.350" (8.89mm) 124 lbs (56.25 kg)

Technical documentation and resources
