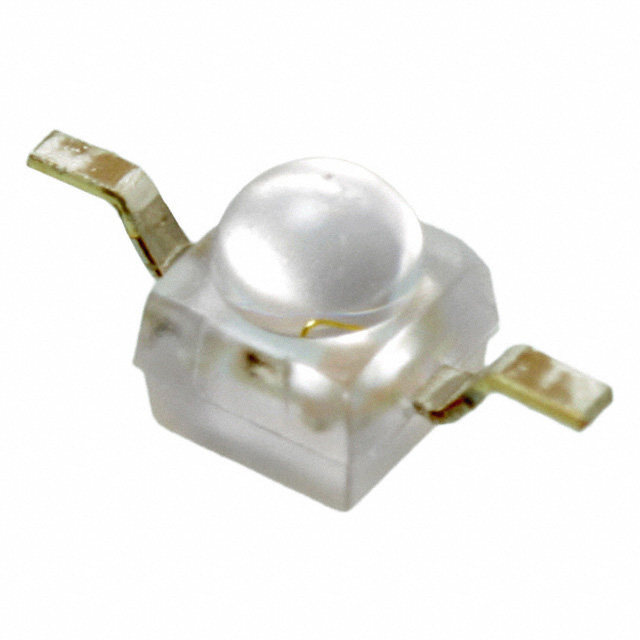

VSMB2943RGX01
ActiveVishay General Semiconductor - Diodes Division
EMITTER IR 940NM 100MA SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VSMB2943RGX01
ActiveVishay General Semiconductor - Diodes Division
EMITTER IR 940NM 100MA SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VSMB2943RGX01 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 100 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 2-SMD, Z-Bend |
| Radiant Intensity (Ie) Min @ If [Min] | 20 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 50 ° |
| Voltage - Forward (Vf) (Typ) | 1.35 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.81 | |
| 10 | $ 0.53 | |||
| 100 | $ 0.35 | |||
| 1000 | $ 0.27 | |||
| 2000 | $ 0.25 | |||
| Digi-Reel® | 1 | $ 0.81 | ||
| 10 | $ 0.53 | |||
| 100 | $ 0.35 | |||
| 1000 | $ 0.27 | |||
| 2000 | $ 0.25 | |||
| Tape & Reel (TR) | 6000 | $ 0.26 | ||
| 12000 | $ 0.24 | |||
| 18000 | $ 0.24 | |||
| 30000 | $ 0.23 | |||
| 42000 | $ 0.23 | |||
Description
General part information
VSMB2943 Series
Infrared (IR) Emitter 940nm 1.35V 100mA 20mW/sr @ 100mA 50° 2-SMD, Z-Bend
Documents
Technical documentation and resources
