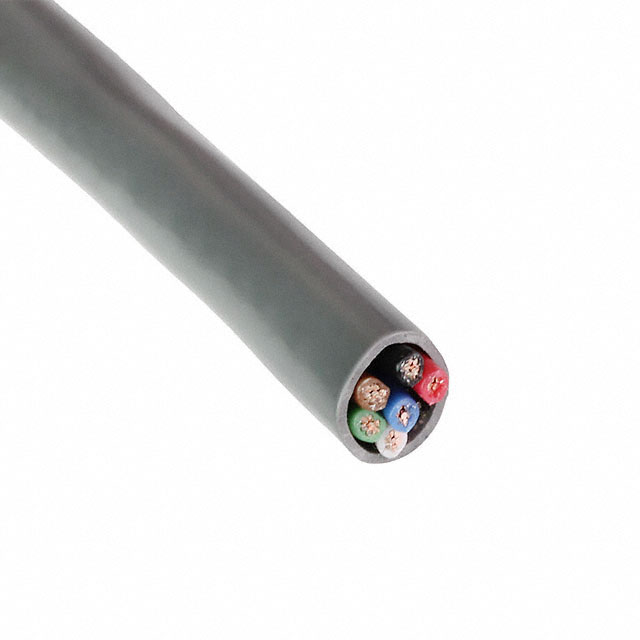

E1036S.30.10

Active

Prysmian Group

CABLE 6COND 18AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 6COND 18AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	E1036S.30.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.225 "
Jacket (Insulation) Diameter [diameter]	5.72 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	6
Ratings	ASTM B-3
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	18 AWG

Part	Cable Type	Length	Length	Jacket Color	Jacket (Insulation) Material	Features	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Ratings	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Conductor Material
Prysmian Group E1036S.41.10	Multi-Conductor	1000 ft	15.24 m 304.8 m	Gray	Poly-Vinyl Chloride (PVC) Riser	Rip Cord	Poly-Vinyl Chloride (PVC)	0.015 in	0.381 mm	300 V	30.5 m 152.4 m	50 ft 100 ft 500 '	0.225 "	5.72 mm	18 AWG	ASTM B-3	Alarm Security Sound	26 AWG	7	6	Copper Annealed Bare
Prysmian Group E1036S.30.10	Multi-Conductor	1000 ft	304.8 m	Gray	Poly-Vinyl Chloride (PVC) Riser	Rip Cord	Poly-Vinyl Chloride (PVC)	0.015 in	0.381 mm	300 V			0.225 "	5.72 mm	18 AWG	ASTM B-3	Alarm Security Sound	26 AWG	7	6	Copper Annealed Bare

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Conductor Multi-Conductor Cable Gray 18 AWG 1000.0' (304.8m)

Technical documentation and resources

No documents available
