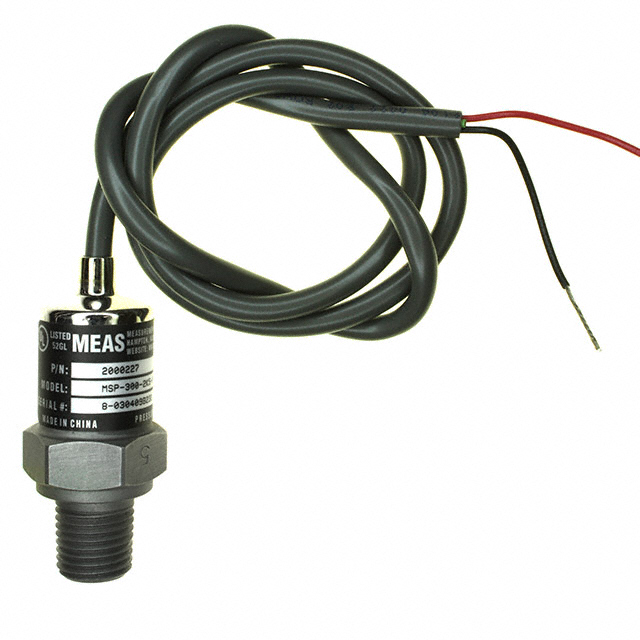

M3051-000005-2K5PG

Active

TE Connectivity Measurement Specialties

TRANSDUCER 4-20MA 2500# PRES

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

TRANSDUCER 4-20MA 2500# PRES

Technical Specifications

Parameters and characteristics for this part

Specification	M3051-000005-2K5PG

Accuracy	1 %
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	5000 PSI
Maximum Pressure [Max]	34473.79 kPa
Operating Pressure	2500 PSI
Operating Pressure	17236.89 kPa
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Output [Max]	20 mA
Output [Min]	4 mA
Output Type	Analog Current
Package / Case	Cylinder, Threaded
Port Size [custom]	NPT
Port Size [custom]	Male
Port Size [x]	0.25 "
Port Size [x]	6.35 mm
Port Style	Threaded
Pressure Type	Vented Gauge
Termination Style	Cable
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	9 V

Part	Output [Max]	Output [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Port Style	Output Type	Operating Pressure	Operating Pressure	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Maximum Pressure [Max]	Maximum Pressure [Max]	Pressure Type	Accuracy	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Features
TE Connectivity Measurement Specialties M3051-000005-2K5PG	20 mA	4 mA	30 VDC	9 V	Cylinder Threaded	Threaded	Analog Current	2500 PSI	17236.89 kPa	NPT	0.25 "	6.35 mm	Male	5000 PSI	34473.79 kPa	Vented Gauge	1 %	Cable	85 °C	-20 C	Amplified Output Temperature Compensated
TE Connectivity Measurement Specialties M3051-000005-01KPG	20 mA	4 mA	30 VDC	9 V	Cylinder	Threaded	Analog Current	1000 PSI	6894.76 kPa	NPT	0.25 "	6.35 mm	Male	2000 PSI	13789.51 kPa	Vented Gauge	1 %	Cable	85 °C	-20 C	Amplified Output Temperature Compensated
TE Connectivity Measurement Specialties M3051-000006-100PG					Cylinder Threaded													Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	120	$ 120.35

General part information

Pressure Sensor 2500PSI (17236.89kPa) Vented Gauge Male - 1/4" (6.35mm) NPT 4 mA ~ 20 mA Cylinder, Threaded
