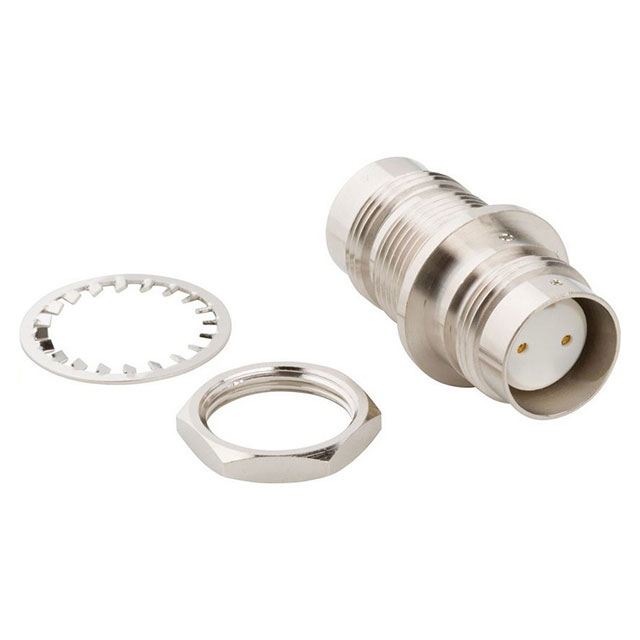

000-7925-RFX

Active

Amphenol RF

CONN TWINAX ADAPTER 0HZ TO 0.5GHZ ST PANEL MOUNT RCP/RCP GOLD

Deep-Dive with AI

Search across all available documentation for this part.

000-7925-RFX

Active

Amphenol RF

CONN TWINAX ADAPTER 0HZ TO 0.5GHZ ST PANEL MOUNT RCP/RCP GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	000-7925-RFX

Adapter Series	Twinaxial to Twinaxial
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Twinaxial Jack, Female Socket
Convert To (Adapter End)	Twinaxial Jack, Female Socket
Frequency - Max [Max]	500 MHz
Impedance	Non-Constant
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

000-79 Series

Part	Center Gender	Frequency - Max [Max]	Style	Impedance	Conversion Type	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Type	Convert To (Adapter End)	Convert From (Adapter End)	Includes	Adapter Series	Body Finish	Body Material	Mating Cycles	Center Contact Plating	Center Contact Material	Impedance	Mounting Type	Dielectric Material	Shield Termination	Connector Style	Housing Color	Connector Type	Contact Termination	Number of Ports	Voltage Rating	Cable Group	Ingress Protection
Amphenol RF 000-7925-RFX	Female to Female	500 MHz	Straight	Non-Constant	Same Series	Bulkhead	-65 ░C	165 °C	Jack to Jack	Female Socket Twinaxial Jack	Twinaxial Jack Female Socket	1 Connector 1 Lockwasher 1 Nut	Twinaxial to Twinaxial	Nickel	Brass
Amphenol RF 000-79125		11 GHz	Right Angle		Same Series		-40 °C	85 °C	Plug to Jack	Male Pin TNC Plug	TNC Jack Female Socket		TNC to TNC	Nickel	Brass	500	Silver	Beryllium Copper	50 Ohms	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)
Amphenol RF 000-79125-RFX		11 GHz	Right Angle		Same Series		-65 ░C	165 °C	Plug to Jack	Female Socket TNC Jack			TNC to TNC	Nickel	Brass	500	Gold	Brass Phosphor Bronze	50 Ohms	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)
Amphenol RF 000-79100	Female to Female	11 GHz	Straight		Same Series	Bulkhead	-65 ░C	165 °C	Jack to Jack	Female Socket TNC Jack	TNC Jack Female Socket	1 Connector 1 Lockwasher 1 Nut	TNC to TNC	Nickel	Brass	500	Silver	Beryllium Copper	50 Ohms		Polytetrafluoroethylene (PTFE)
Amphenol RF 000-79075		11 GHz					-40 °C	85 °C				1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket		Nickel	Brass	500	Silver	Beryllium Copper	50 Ohms	Free Hanging (In-Line) Right Angle	Polytetrafluoroethylene (PTFE)	Clamp	TNC	Silver	Male Pin Plug	Solder	1	500 V	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Weatherproof
Amphenol RF 000-79875		4 GHz					-40 °C	85 °C				1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer		Nickel	Brass	500	Silver	Brass	50 Ohms	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Clamp	TNC	Silver	Male Pin Plug	Solder	1	500 V	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Weatherproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 2.40
Digikey	Bulk	1	$ 19.94
		10	$ 16.94
		25	$ 15.88
		50	$ 15.12
		100	$ 14.40
		250	$ 14.02
		500	$ 12.86

Description

General part information

000-79 Series

Adapter Coaxial Connector Twinaxial Jack, Female Socket To Twinaxial Jack, Female Socket Non-Constant

Documents

Technical documentation and resources

No documents available
