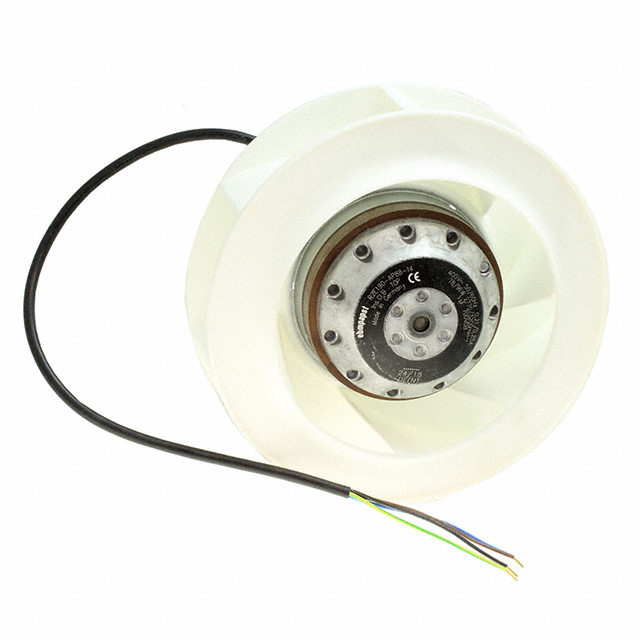

R2E190-AP88-14

Obsolete

ebm-papst Inc.

MOTORIZED IMPELLER

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

MOTORIZED IMPELLER

Technical Specifications

Parameters and characteristics for this part

Specification	R2E190-AP88-14

Approval Agency	CE
Bearing Type	Ball
Current Rating (Amps)	0.25 A
Fan Type	Motorized Impellers
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Polypropylene (PP)
Operating Temperature [Max]	40 °C
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	96 W
RPM	3200 RPM
Size / Dimension	Round
Size / Dimension [diameter]	190 mm
Termination	4 Wire Leads with Splice Terminals
Voltage - Rated	400 VAC
Width [x]	68.5 mm

Part	Features	Bearing Type	Fan Type	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Termination	Ingress Protection	Current Rating (Amps)	Material - Blade	RPM	Size / Dimension	Size / Dimension [diameter]	Power (Watts)	Approval Agency	Width [x]	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	Weight	Weight	Noise
ebm-papst Inc. R2E190-RB88-14	Capacitor Thermal Overload Protector (TOP)	Ball	Motorized Impellers	400 VAC	55 °C	55 °C	-25 °C	-25 °C	4 Wire Leads	IP44	270 mA	Nylon Polyamide (PA)	3150 RPM	Round	190 mm	100 W	CE
ebm-papst Inc. R2E190-RA50-21		Ball	Motorized Impellers	115 VAC	75 ░C	75 °C	-25 °C	-25 °C	4 Wire Leads	IP44		Fiberglass Reinforced Nylon Polyamide (PA)	2450 RPM	Round	190 mm	70 W	UL	68.5 mm	341.4 CFM	9.56 m³/min	130 VAC	100 VAC	2.6 lbs	1.2 kg
ebm-papst Inc. R2E190-RA26-46	Capacitor Thermal Overload Protector (TOP)	Ball	Motorized Impellers	230 VAC	50 °C	50 °C	-25 °C	-25 °C	3 Position Rectangular Connector	IP44	0.35 A	Nylon Polyamide (PA)	2580 RPM	Round	190 mm	80 W	CCC CE CSA UL	68.5 mm
ebm-papst Inc. R2E190-RA26-20		Ball	Motorized Impellers	230 VAC	75 ░C	75 °C	-25 °C	-25 °C	4 Wire Leads	IP44		Fiberglass Reinforced Nylon Polyamide (PA)	2500 RPM	Round	190 mm	70 W	UL	68.5 mm	347.3 CFM	9.72 m³/min			2.6 lbs	1.2 kg	68 dB
ebm-papst Inc. R2E190-AP88-14	Capacitor Thermal Overload Protector (TOP)	Ball	Motorized Impellers	400 VAC	40 °C	40 °C	-25 °C	-25 °C	4 Wire Leads with Splice Terminals	IP44	0.25 A	Polypropylene (PP)	3200 RPM	Round	190 mm	96 W	CE	68.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Motorized Impellers 400VAC Round - 190mm Dia Ball 4 Wire Leads with Splice Terminals
