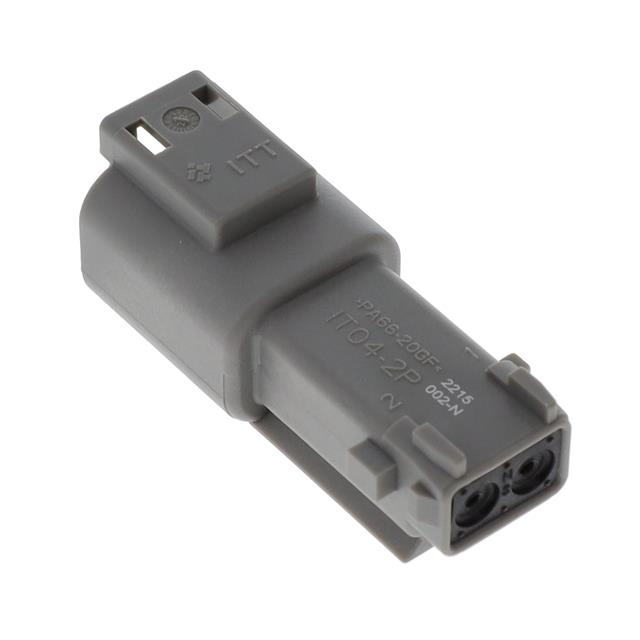

IT04-2P-002-N
ActiveITT Cannon, LLC
CONN RCPT HSG 2POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IT04-2P-002-N
ActiveITT Cannon, LLC
CONN RCPT HSG 2POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IT04-2P-002-N |
|---|---|
| Color | Gray |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
IT04-2 Series
| Part | Fastening Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Type | Insulation Material | Connector Type | Contact Termination | Color | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | Latch Holder | 2 | -55 °C | 125 °C | Free Hanging (In-Line) | Male Pin | Glass Filled Nylon Polyamide (PA) | Receptacle | Crimp | Gray | 1 | |
ITT Cannon, LLC | Latch Holder | 2 | -55 °C | 125 °C | Free Hanging (In-Line) | Male Pin | Glass Filled Nylon Polyamide (PA) | Receptacle | Crimp | Gray | 1 | Cap (Cover) IP67 IP68 IP69K Sealed |
ITT Cannon, LLC | Latch Holder | 2 | -55 °C | 125 °C | Free Hanging (In-Line) | Male Pin | Glass Filled Nylon Polyamide (PA) | Receptacle | Crimp | Black | 1 | Cap (Cover) IP67 IP68 IP69K Sealed |
ITT Cannon, LLC | Latch Holder | 2 | -55 °C | 125 °C | Free Hanging (In-Line) | Male Pin | Glass Filled Nylon Polyamide (PA) | Receptacle | Crimp | Black | 1 | Cap (Cover) IP67 IP68 IP69K Sealed |
ITT Cannon, LLC | Latch Holder | 2 | -55 °C | 125 °C | Free Hanging (In-Line) | Male Pin | Glass Filled Nylon Polyamide (PA) | Receptacle | Crimp | Black | 1 | |
ITT Cannon, LLC | Latch Holder | 2 | -55 °C | 125 °C | Free Hanging (In-Line) | Male Pin | Glass Filled Nylon Polyamide (PA) | Receptacle | Crimp | Black | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.58 | |
| 10 | $ 0.49 | |||
| 25 | $ 0.47 | |||
| 50 | $ 0.46 | |||
| 100 | $ 0.44 | |||
| 250 | $ 0.40 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.35 | |||
Description
General part information
IT04-2 Series
2 Rectangular Connectors - Housings Receptacle Gray
