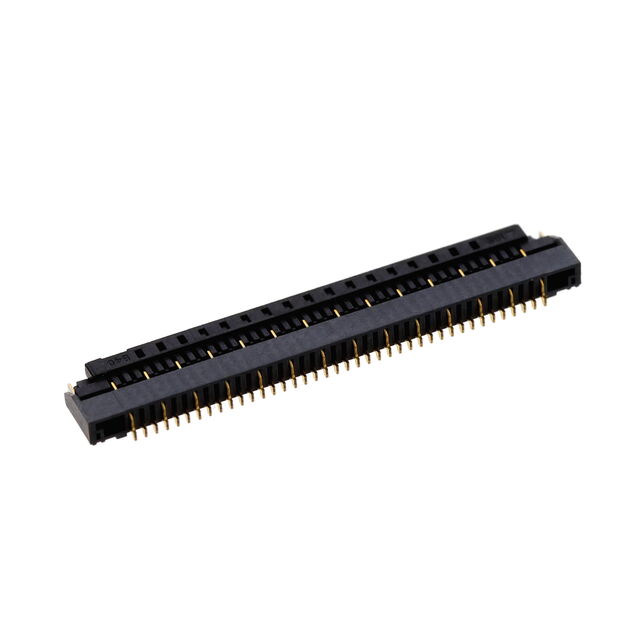

FH55-40S-0.5SH

Active

Hirose Electric USA, Inc.

CARD EDGE CONNECTOR, 40 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.019 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, PLUG,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FH55-40S-0.5SH

Active

Hirose Electric USA, Inc.

CARD EDGE CONNECTOR, 40 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.019 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, PLUG,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH55-40S-0.5SH

Cable End Type	Tabbed
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Height Above Board	0.059 in
Height Above Board	1.5 mm
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount
Number of Positions	40
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Crimp
Voltage Rating	50 V

FH55 Series

Part	FFC, FCB Thickness	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Features	Flat Flex Type	Cable End Type	Height Above Board	Height Above Board	Mounting Type	Locking Feature	Actuator Color	Housing Color	Material Flammability Rating	Pitch [x]	Pitch [x]	Actuator Material	Current Rating (Amps)	Mating Cycles	Contact Finish	Housing Material	Number of Positions	Voltage Rating	Contact Material	Termination	Connector/Contact Type
Hirose Electric USA, Inc. FH55-31S-0.5SH	0.3 mm	1.25 Áin	0.03 Ám	85 °C	-55 °C	Solder Retention Zero Insertion Force (ZIF)	FPC	Tabbed	0.059 in	1.5 mm	Surface Mount Right Angle	Flip Lock	Black	Gray	UL94 V-0	0.5 mm	0.02 in	Liquid Crystal Polymer (LCP)	0.5 A	20	Gold	Liquid Crystal Polymer (LCP)	31	50 V	Phosphor Bronze	Crimp	Contacts Bottom
Hirose Electric USA, Inc. FH55M-40S-0.4SH	0.3 mm	1.25 Áin	0.03 Ám	85 °C	-55 °C	Solder Retention Zero Insertion Force (ZIF)	FPC	Tabbed	0.059 in	1.5 mm	Surface Mount Right Angle	Flip Lock	Black	Gray	UL94 V-0	0.4 mm	0.016 in	Liquid Crystal Polymer (LCP)	400 mA	20	Gold	Liquid Crystal Polymer (LCP)	40	40 V	Phosphor Bronze	Solder	Receptacle
Hirose Electric USA, Inc. FH55M-31S-0.4SH	0.3 mm	1.25 Áin	0.03 Ám	85 °C	-55 °C	Solder Retention Zero Insertion Force (ZIF)	FPC	Tabbed	0.059 in	1.5 mm	Surface Mount Right Angle	Flip Lock	Black	Gray	UL94 V-0	0.4 mm	0.016 in	Liquid Crystal Polymer (LCP)	400 mA	20	Gold	Liquid Crystal Polymer (LCP)	31	40 V	Phosphor Bronze	Solder	Contacts Bottom
Hirose Electric USA, Inc. FH55-40S-0.5SH	0.3 mm			85 °C	-55 °C	Solder Retention Zero Insertion Force (ZIF)	FPC	Tabbed	0.059 in	1.5 mm	Surface Mount	Flip Lock			UL94 V-0	0.5 mm	0.02 in		0.5 A	20	Gold	Liquid Crystal Polymer (LCP)	40	50 V	Phosphor Bronze	Crimp	Contacts Bottom
Hirose Electric USA, Inc. FH55-22S-0.5SH	0.3 mm	1.25 Áin	0.03 Ám	85 °C	-55 °C	Solder Retention Zero Insertion Force (ZIF)	FPC	Tabbed	0.059 in	1.5 mm	Surface Mount Right Angle	Flip Lock	Black	Gray	UL94 V-0	0.5 mm	0.02 in	Liquid Crystal Polymer (LCP)	0.5 A	20	Gold	Liquid Crystal Polymer (LCP)	22 positions	50 V	Phosphor Bronze	Solder	Contacts Bottom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.74
		10	$ 3.39
		25	$ 3.21
		50	$ 3.14
		100	$ 2.99
		250	$ 2.62
		500	$ 2.54
		1000	$ 2.17
		2500	$ 2.02
	Digi-Reel®	1	$ 3.74
		10	$ 3.39
		25	$ 3.21
		50	$ 3.14
		100	$ 2.99
		250	$ 2.62
		500	$ 2.54
		1000	$ 2.17
		2500	$ 2.02
	Tape & Reel (TR)	5000	$ 1.78

Description

General part information

FH55 Series

40 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount
