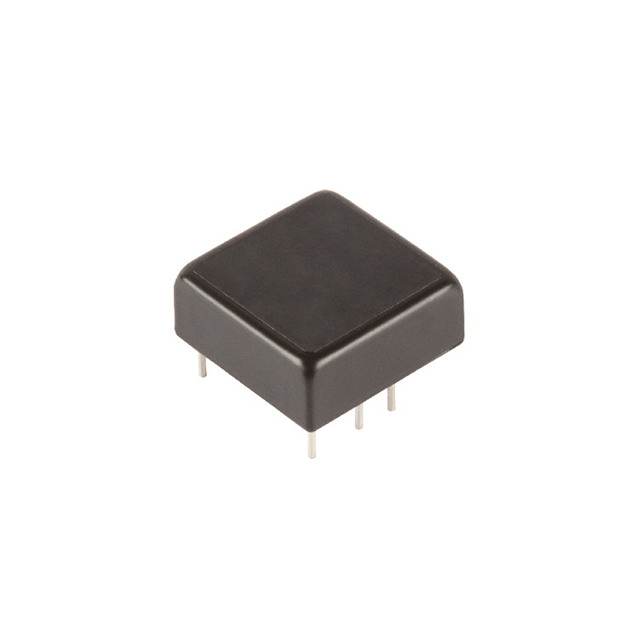

JTK3024D15

Active

XP POWER

DC-DC CONVERTER, 2 O/P, 30W

Search across all available documentation for this part.

Active

XP POWER

DC-DC CONVERTER, 2 O/P, 30W

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Voltage - Input (Max) [Max]	Number of Outputs	Mounting Type	Applications	Voltage - Input (Min) [Min]	Standard Number	Type	Power (Watts)	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Efficiency	Control Features	Features	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
XP POWER JTK3024S15	6-DIP Module	36 V	1	Through Hole	ITE (Commercial)	9 V	62368-1	Isolated Module	30 W	1.6 kV	100 °C	-40 °C	15 V	25.4 mm	25.4 mm	0.43 "	25.4 mm	10.9 mm	1 in	2 A	91 %	Active High Enable	OVP Remote On/Off SCP
XP POWER JTK3024D12	6-DIP Module	36 V	2	Through Hole	ITE (Commercial)	9 V	62368-1	Isolated Module	30 W	1.6 kV	100 °C	-40 °C	12 V	25.4 mm	25.4 mm	0.43 "	25.4 mm	10.9 mm	1 in		89 %	Active High Enable	OVP Remote On/Off SCP	-12 V	1.25 A
XP POWER JTK3024D15	6-DIP Module	36 V	2	Through Hole	ITE (Commercial)	9 V	62368-1	Isolated Module	30 W	1.6 kV	100 °C	-40 °C	15 V	25.4 mm	25.4 mm	0.43 "	25.4 mm	10.9 mm	1 in		91 %	Active High Enable	OVP Remote On/Off SCP	-15 V	1 A	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 15V -15V 1A, 1A 9V - 36V Input
