SML-D22YVWT86
ActiveRohm Semiconductor

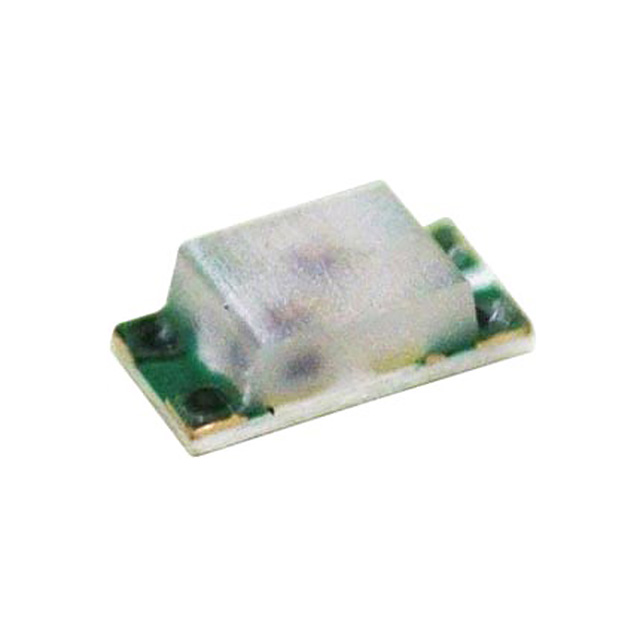

SMALL 2-COLOR LIGHT-EMITTING TYPE, MOLDED CHIP LED (YELLOW/RED)
Deep-Dive with AI
Search across all available documentation for this part.
SML-D22YVWT86
ActiveRohm Semiconductor
SMALL 2-COLOR LIGHT-EMITTING TYPE, MOLDED CHIP LED (YELLOW/RED)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SML-D22YVWT86 |
|---|---|
| Color | Yellow, Red |
| Configuration | Independent |
| Current - Test [custom] | 5 mA |
| Current - Test [custom] | 5 mA |
| Height (Max) [Max] [z] | 0.65 mm |
| Lens Size [x] | 1.2 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 25 mcd, 16 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Voltage - Forward (Vf) (Typ) [custom] | 2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 1.9 V |
| Wavelength - Dominant | 629 nm, 588 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.80 | |
| 10 | $ 0.48 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.24 | |||
| Digi-Reel® | 1 | $ 0.80 | ||
| 10 | $ 0.48 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.24 | |||
| Tape & Reel (TR) | 3000 | $ 0.17 | ||
Description
General part information
SML-D22YVW Series
SML-D2 series is an industry standard 1608 Size, small two-color, surface-mount chip LED.
