300-30246

Active

HELLERMANNTYTON

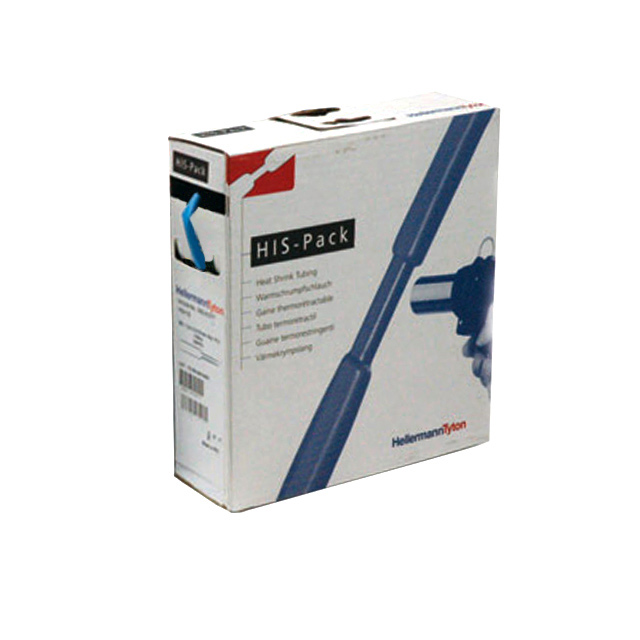

HEATSHRINK, 2.4MM, BLUE, 10M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMaterials Guide for Bundling & Securing Datasheet

300-30246

Active

HELLERMANNTYTON

HEATSHRINK, 2.4MM, BLUE, 10M

Deep-Dive with AI

DocumentsMaterials Guide for Bundling & Securing Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	300-30246

Color	Blue
Features	Corrosion Resistant, Self Extinguishing
Inner Diameter - Recovered [diameter]	0.049 in
Inner Diameter - Recovered [diameter]	1.24 mm
Inner Diameter - Supplied [diameter]	0.093 in
Inner Diameter - Supplied [diameter]	2.36 mm
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.5 mm
Recovered Wall Thickness	0.019 "
Shrink Temperature	120 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

300-30 Series

Part	Features	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Material	Type	Operating Temperature [Max]	Operating Temperature [Min]	Shrinkage Ratio	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrink Temperature	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered
HELLERMANNTYTON 300-30953	Corrosion Resistant Self Extinguishing	Clear	4.75 mm	0.187 in	0.58 mm	0.023 in	Polyolefin (PO)	Tubing Flexible	135 °C	-55 °C	2 to 1	0.375 in	9.53 mm	120 °C
HELLERMANNTYTON 300-30326	Corrosion Resistant Self Extinguishing	Blue	1.57 mm	0.062 in	0.5 mm	0.019 "	Polyolefin (PO)	Tubing Flexible	135 °C	-55 °C	2 to 1	0.125 "	3.18 mm	120 °C
HELLERMANNTYTON 300-30120	Corrosion Resistant Self Extinguishing	Black	0.023 in		0.38 mm	0.015 in	Polyolefin (PO)	Tubing Flexible	135 °C	-55 °C	2 to 1	0.046 in	1.17 mm	120 °C	0.58 mm
HELLERMANNTYTON 300-30482	Corrosion Resistant Self Extinguishing	Red	2.41 mm	0.095 in	0.5 mm	0.019 "	Polyolefin (PO)	Tubing Flexible	135 °C	-55 °C	2 to 1	0.187 in	4.75 mm	120 °C
HELLERMANNTYTON 300-30246	Corrosion Resistant Self Extinguishing	Blue	1.24 mm	0.049 in	0.5 mm	0.019 "	Polyolefin (PO)	Tubing Flexible	135 °C	-55 °C	2 to 1		0.093 in	120 °C		2.36 mm
HELLERMANNTYTON 300-30163	Corrosion Resistant Self Extinguishing	Clear	0.79 mm	0.031 in	0.38 mm	0.015 in	Polyolefin (PO)	Tubing Flexible	135 °C	-55 °C	2 to 1	0.063 in	1.6 mm	120 °C
HELLERMANNTYTON 300-30952	Corrosion Resistant Self Extinguishing	Red	4.75 mm	0.187 in	0.58 mm	0.023 in	Polyolefin (PO)	Tubing Flexible	135 °C	-55 °C	2 to 1	0.375 in	9.53 mm	120 °C
HELLERMANNTYTON 300-30643	Corrosion Resistant Self Extinguishing	Clear		0.125 in	0.58 mm	0.023 in	Polyolefin (PO)	Tubing Flexible	135 °C	-55 °C	2 to 1	0.25 in	6.35 mm	120 °C			3.18 mm
HELLERMANNTYTON 300-30950	Corrosion Resistant Self Extinguishing	Black	4.75 mm	0.187 in	0.58 mm	0.023 in	Polyolefin (PO)	Tubing Flexible	135 °C	-55 °C	2 to 1	0.375 in	9.53 mm	120 °C
HELLERMANNTYTON 300-30640	Corrosion Resistant Self Extinguishing	Black		0.125 in	0.58 mm	0.023 in	Polyolefin (PO)	Tubing Flexible	135 °C	-55 °C	2 to 1	0.25 in	6.35 mm	120 °C			3.18 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.99
Newark	Each	1	$ 19.48
		15	$ 16.65
		50	$ 15.24
