NCS6S4803C

Active

Murata Power Solutions Inc.

TUBE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

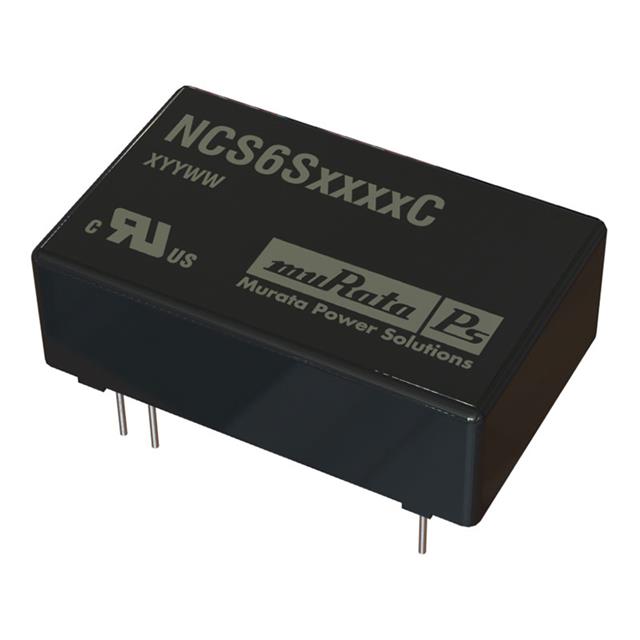

NCS6S4803C

Active

Murata Power Solutions Inc.

TUBE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NCS6S4803C

Applications	ITE (Commercial)
Current - Output (Max) [Max]	1.52 A
Efficiency	76 %
Features	OTP, UVLO, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module, 8 Leads
Power (Watts)	5 W
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	20 mm
Size / Dimension [y]	0.79 "
Size / Dimension [z]	10 mm
Size / Dimension [z]	0.39 in
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	3.3 V

NCS6S Series

Part	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Applications	Mounting Type	Features	Voltage - Input (Min) [Min]	Voltage - Isolation	Type	Voltage - Output 1	Power (Watts)	Voltage - Input (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Package / Case [x]
Murata Power Solutions Inc. NCS6S1203C	78 %	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	ITE (Commercial)	Through Hole	OTP SCP UVLO	9 V	1.5 kV	Isolated Module	3.3 V	5 W	36 V	24-DIP Module 8 Leads	85 °C	-40 °C	1	1.52 A
Murata Power Solutions Inc. NCS6S4803C	76 %	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	ITE (Commercial)	Through Hole	OTP SCP UVLO	18 V	1.5 kV	Isolated Module	3.3 V	5 W	75 V	24-DIP Module 8 Leads	85 °C	-40 °C	1	1.52 A
Murata Power Solutions Inc. NCS6S4805C	80 %	0.39 in	0.79 in	1.26 in				ITE (Commercial)	Through Hole		18 V	1.5 kV	Isolated Module	5 V	6 W	75 V	24-DIP Module	85 °C	-40 °C	1	1.2 A	32 mm	9.9 mm	20.1 mm	7 Leads	600 mil
Murata Power Solutions Inc. NCS6S4812C	84 %	0.39 in	0.79 in	1.26 in				ITE (Commercial)	Through Hole		18 V	1.5 kV	Isolated Module	12 V	6 W	75 V	24-DIP Module	85 °C	-40 °C	1	500 mA	32 mm	9.9 mm	20.1 mm	7 Leads	600 mil
Murata Power Solutions Inc. NCS6S4815C	84 %	0.39 in	0.79 in	1.26 in				ITE (Commercial)	Through Hole		18 V	1.5 kV	Isolated Module	15 V	6 W	75 V	24-DIP Module	85 °C	-40 °C	1	400 mA	32 mm	9.9 mm	20.1 mm	7 Leads	600 mil
Murata Power Solutions Inc. NCS6S1215C	87 %	0.39 in	0.79 in	1.26 in				ITE (Commercial)	Through Hole		9 V	1.5 kV	Isolated Module	15 V	6 W	36 V	24-DIP Module	85 °C	-40 °C	1	400 mA	32 mm	9.9 mm	20.1 mm	7 Leads	600 mil

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 22.00
		5	$ 21.89
		10	$ 21.74
		25	$ 21.49
		50	$ 20.97
		100	$ 19.91
		250	$ 18.63
		500	$ 17.38
Newark	Each	10	$ 21.32
		25	$ 21.06
		50	$ 20.54
		100	$ 19.50
		250	$ 18.20

Description

General part information

NCS6S Series

Isolated Module DC DC Converter 1 Output 3.3V 1.52A 18V - 75V Input

Documents

Technical documentation and resources
