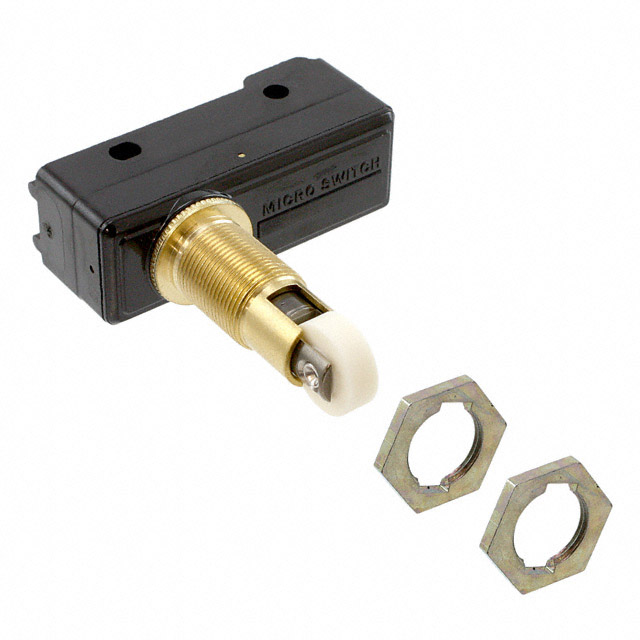

WZ-2RQ1846

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NC 15A 125V

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NC 15A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Differential Travel	Differential Travel	Release Force	Operating Position	Operating Position	Features	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Actuator Type	Circuit	Voltage Rating - AC	Overtravel	Overtravel	Voltage Rating - DC	Operating Force [Max]	Operating Force [Min]	Termination Style	Pretravel	Pretravel
Honeywell Sensing and Productivity Solutions WZ-2RQ1846	On-Mom	0.002 in	0.05 mm	113 gf	33.4 mm	1.313 in	Nylon Roller	15 A 500 mA	85 °C	-55 °C	20000000 Cycles	Cross Roller Plunger	SPST-NC	125 V	3.6 mm	0.141 in	125 VDC	368 gf	255 gf	Solder Lug	0.015 in	0.4 mm
Honeywell Sensing and Productivity Solutions WZ-2RQ1T	On-Mom	0.002 in	0.05 mm	113 gf	21.8 mm	0.859 in	Steel Plunger	15 A 500 mA	85 °C	-55 °C	20000000 Cycles	Overtravel Plunger	SPST-NC	125 V	5.6 mm	0.219 in	125 VDC	368 gf	255 gf	Screw Terminal	0.015 in	0.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPST-NC Panel Mount
