60S231-K00N1

Active

Rosenberger

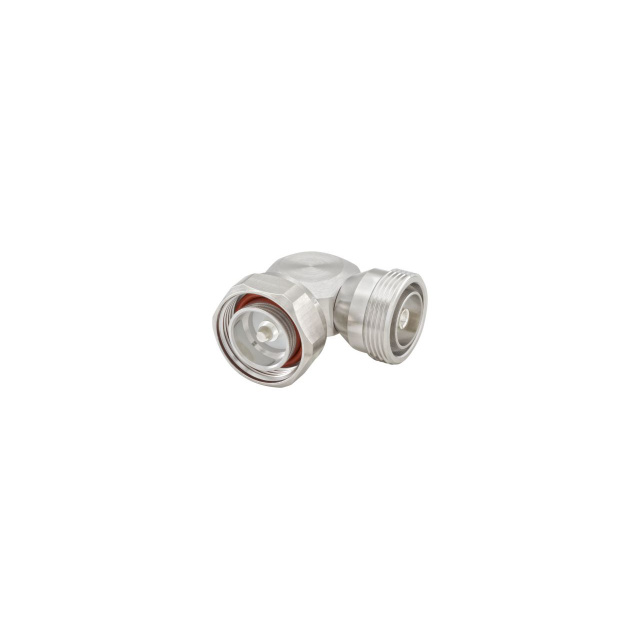

COAX ADAPT 7/16 TO 7/16

Search across all available documentation for this part.

Active

Rosenberger

COAX ADAPT 7/16 TO 7/16

Technical Specifications

Parameters and characteristics for this part

Specification	60S231-K00N1

Adapter Series [Max]	0.4375
Adapter Series [Min]	0.4375 EIA
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass, Bronze
Center Contact Plating	Silver
Conversion Type	Same Series
Convert From (Adapter End)	7/16 Jack, Female Socket
Convert To (Adapter End)	Male Pin, 7/16 Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Impedance	50 Ohms
Insertion Loss	0.05 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Style	Right Angle

Part	Frequency - Max [Max]	Body Finish	Center Contact Plating	Mating Cycles	Center Contact Material	Mounting Type	Dielectric Material	Impedance	Conversion Type	Adapter Type	Body Material	Style	Adapter Series [Min]	Adapter Series [Max]	Insertion Loss	Convert From (Adapter End)	Convert To (Adapter End)
Rosenberger 60S231-K00N1	7.5 GHz	White Bronze	Silver	500	Brass Bronze	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	50 Ohms	Same Series	Plug to Jack	Brass	Right Angle	0.4375 EIA	0.4375	0.05 dB	7/16 Jack Female Socket	7/16 Plug Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	6	$ 105.68

General part information

Adapter Coaxial Connector 7/16 Jack, Female Socket To 7/16 Plug, Male Pin 50 Ohms
