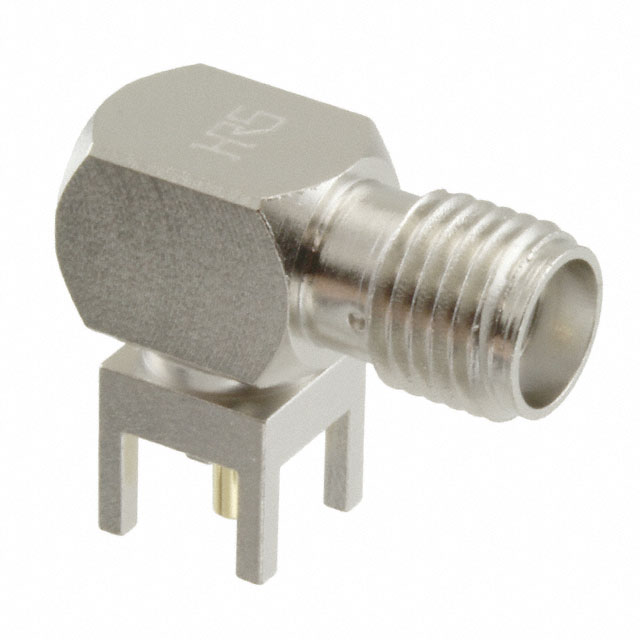

HRM-300-126S(40)
ActiveHirose Electric USA, Inc.
CONN SMA RCPT R/A 50 OHM PCB
Deep-Dive with AI
Search across all available documentation for this part.
HRM-300-126S(40)
ActiveHirose Electric USA, Inc.
CONN SMA RCPT R/A 50 OHM PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HRM-300-126S(40) |
|---|---|
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 12.4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Insertion Loss | 0.1 dB |
| Mating Cycles | 1000 |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.74 | |
| 20 | $ 17.98 | |||
| 40 | $ 16.79 | |||
| 100 | $ 14.82 | |||
| 260 | $ 13.83 | |||
| 500 | $ 13.53 | |||
Description
General part information
HRM-300 Series
SMA Connector Receptacle, Female Socket 50 Ohms Through Hole, Right Angle Solder
