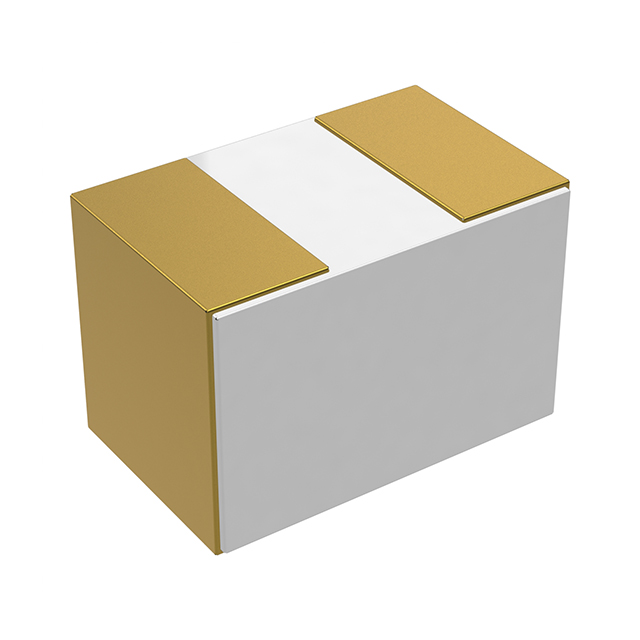

$QB0302A20WYT\500 - Q-Bridge Series, Style W$

QB0302A20WYT\500

Active

Kyocera AVX

THERMAL CONDUCTOR Q-BRIDGE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QB0302A20WYT\500

Material	Aluminum Nitride
Outline [x]	0.77 mm
Outline [y]	0.51 mm
Shape	Rectangular
Thermal Conductivity	81 W/m-K, 53 W/m-K
Thermal Resistivity	19 °C/W, 12 °C/W
Thickness [custom]	0.051 mm
Thickness [custom]	0.002 "
Type	Thermal Bridge Jumper
Usage	Heat Transfer

QB0302 Series

Part	Material	Shape	Thermal Resistivity	Usage	Thickness [custom]	Thickness [custom]	Thermal Conductivity	Outline [x]	Outline [y]	Type
Kyocera AVX QB0302B20ESC	Beryllium Oxide	Rectangular	12 °C/W 19 °C/W	Heat Transfer	0.051 mm	0.002 "	53 W/m-K 81 W/m-K	0.77 mm	0.51 mm	Thermal Bridge Jumper
Kyocera AVX QB0302B20WYS	Beryllium Oxide	Rectangular	12 °C/W 19 °C/W	Heat Transfer	0.051 mm	0.002 "	53 W/m-K 81 W/m-K	0.77 mm	0.51 mm	Thermal Bridge Jumper
Kyocera AVX QB0302A20ESS	Aluminum Nitride	Rectangular	12 °C/W 19 °C/W	Heat Transfer	0.051 mm	0.002 "	53 W/m-K 81 W/m-K	0.77 mm	0.51 mm	Thermal Bridge Jumper
Kyocera AVX QB0302A20EST	Aluminum Nitride	Rectangular	12 °C/W 19 °C/W	Heat Transfer	0.051 mm	0.002 "	53 W/m-K 81 W/m-K	0.77 mm	0.51 mm	Thermal Bridge Jumper
Kyocera AVX QB0302A20WYC	Aluminum Nitride	Rectangular	12 °C/W 19 °C/W	Heat Transfer	0.051 mm	0.002 "	53 W/m-K 81 W/m-K	0.77 mm	0.51 mm	Thermal Bridge Jumper
Kyocera AVX QB0302B20EST\500	Beryllium Oxide	Rectangular	12 °C/W 19 °C/W	Heat Transfer	0.051 mm	0.002 "	53 W/m-K 81 W/m-K	0.77 mm	0.51 mm	Thermal Bridge Jumper
Kyocera AVX QB0302A20EST\500	Aluminum Nitride	Rectangular	12 °C/W 19 °C/W	Heat Transfer	0.051 mm	0.002 "	53 W/m-K 81 W/m-K	0.77 mm	0.51 mm	Thermal Bridge Jumper
Kyocera AVX QB0302A20WYT\500	Aluminum Nitride	Rectangular	12 °C/W 19 °C/W	Heat Transfer	0.051 mm	0.002 "	53 W/m-K 81 W/m-K	0.77 mm	0.51 mm	Thermal Bridge Jumper
Kyocera AVX QB0302A20ESC	Aluminum Nitride	Rectangular	12 °C/W 19 °C/W	Heat Transfer	0.051 mm	0.002 "	53 W/m-K 81 W/m-K	0.77 mm	0.51 mm	Thermal Bridge Jumper
Kyocera AVX QB0302A20WYT	Aluminum Nitride	Rectangular	12 °C/W 19 °C/W	Heat Transfer	0.051 mm	0.002 "	53 W/m-K 81 W/m-K	0.77 mm	0.51 mm	Thermal Bridge Jumper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 0.94
		1000	$ 0.78
		2500	$ 0.72
		5000	$ 0.70
		12500	$ 0.67

Description

General part information

QB0302 Series

Thermal Pad 0.77mm x 0.51mm Rectangular
