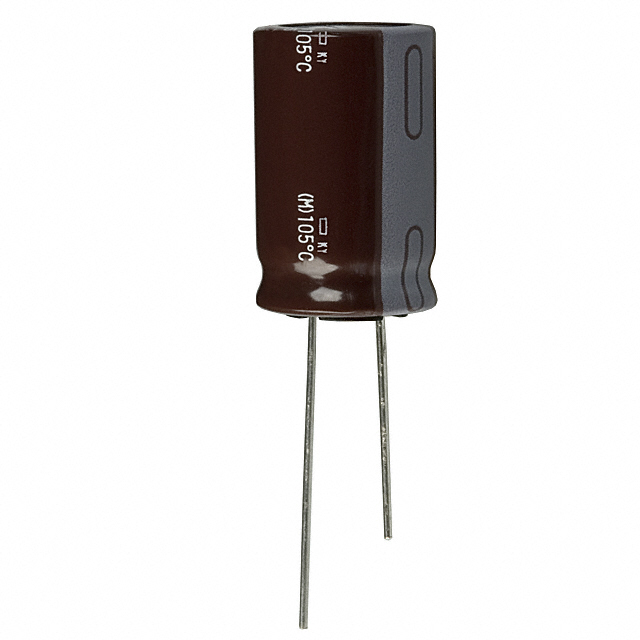

EKY-101ELL331ML25S

Active

Chemi-Con

BULK / CAPACITOR, ALUMINUM, 100 V, CAP.330 , DIA.16 , LENG.25

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKY-101ELL331ML25S

Active

Chemi-Con

BULK / CAPACITOR, ALUMINUM, 100 V, CAP.330 , DIA.16 , LENG.25

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EKY-101ELL331ML25S

Applications	General Purpose
Capacitance	330 µF
Height - Seated (Max) [Max] [z]	1.043 in
Height - Seated (Max) [Max] [z]	26.5 mm
Impedance	38 mOhms
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	10000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	1.7 A
Ripple Current @ Low Frequency	850 mA
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	100 V

EKY-101E Series

Part	Capacitance	Tolerance	Package / Case	Applications	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max)	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Polarization	Lifetime @ Temp.	Ripple Current @ High Frequency	Mounting Type	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con EKY-101ETD470MJC5S	47 µF	20 %	Radial Can	General Purpose	100 V	10 mm	0.394 in	14 mm	0.551 "	192 mA	5 mm	0.197 in	Polar	7000 Hrs	480 mA	Through Hole	170 mOhms	-40 °C	105 ░C
Chemi-Con EKY-101ELL561MLP1S	560 µF	20 %	Radial Can	General Purpose	100 V	16 mm	0.63 in			1 A	7.5 mm	0.295 in	Polar	10000 Hrs	2 A	Through Hole	29 mOhms	-40 °C	105 ░C	37 mm	1.457 in
Chemi-Con EKY-101ELL681ML40S	680 µF	20 %	Radial Can	General Purpose	100 V	16 mm	0.63 in			1.32 A	7.5 mm	0.295 in	Polar	10000 Hrs	2.2 A	Through Hole	27 mOhms	-40 °C	105 ░C			1.634 "	41.5 mm
Chemi-Con EKY-101ELL470MJC5S	47 µF	20 %	Radial Can	General Purpose	100 V	10 mm	0.394 in	14 mm	0.551 "	192 mA	5 mm	0.197 in	Polar	7000 Hrs	480 mA	Through Hole	170 mOhms	-40 °C	105 ░C
Chemi-Con EKY-101ELL331ML25S	330 µF	20 %	Radial Can	General Purpose	100 V	16 mm	0.63 in			850 mA	7.5 mm	0.295 in	Polar	10000 Hrs	1.7 A	Through Hole	38 mOhms	-40 °C	105 ░C	26.5 mm	1.043 in
Chemi-Con EKY-101ELL221MK25S	220 µF	20 %	Radial Can	General Purpose	100 V	12.5 mm	0.492 in			625 mA	5 mm	0.197 in	Polar	10000 Hrs	1.25 A	Through Hole	47 mOhms	-40 °C	105 ░C	26.5 mm	1.043 in
Chemi-Con EKY-101ETD101MK16S	100 µF	20 %	Radial Can	General Purpose	100 V	12.5 mm	0.492 in		0.689 in	300 mA	5 mm	0.197 in	Polar	10000 Hrs	750 mA	Through Hole	110 mOhms	-40 °C	105 ░C			17.5 mm
Chemi-Con EKY-101ETD101MJ20S	100 µF	20 %	Radial Can	General Purpose	100 V	10 mm	0.394 in		0.846 in		5 mm	0.197 in	Polar			Through Hole		-40 °C	105 ░C			21.5 mm
Chemi-Con EKY-101ELL471MLN3S	470 µF	20 %	Radial Can	General Purpose	100 V	16 mm	0.63 in			925 mA	7.5 mm	0.295 in	Polar	10000 Hrs	1.85 A	Through Hole	32 mOhms	-40 °C	105 ░C	33 mm	1.299 in
Chemi-Con EKY-101EC5471MLN3S	470 µF	20 %	Radial Can	General Purpose	100 V	16 mm	0.63 in			925 mA	7.5 mm	0.295 in	Polar	10000 Hrs	1.85 A	Through Hole	32 mOhms	-40 °C	105 ░C	33 mm	1.299 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.54
		10	$ 1.15
		50	$ 1.05
		100	$ 0.86
		500	$ 0.69
		1000	$ 0.61
		2500	$ 0.57
		5000	$ 0.55

Description

General part information

EKY-101E Series

330 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
