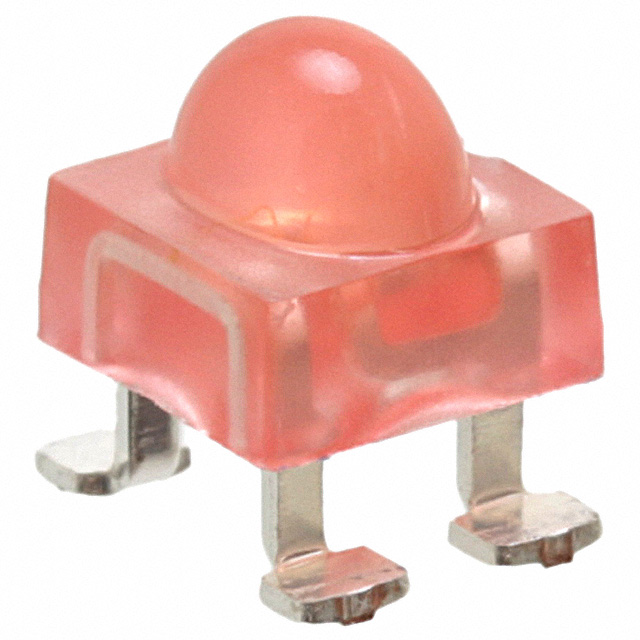

ALMD-LG36-WZ002
ActiveBroadcom Limited
LED RED DIFFUSED SMD
Deep-Dive with AI
Search across all available documentation for this part.
ALMD-LG36-WZ002
ActiveBroadcom Limited
LED RED DIFFUSED SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ALMD-LG36-WZ002 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 5.7 mm |
| Lens Color | Red |
| Lens Style | Oval with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 2140 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Size / Dimension [x] | 4.2 mm |
| Size / Dimension [y] | 4.2 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 100 °, 40 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 626 nm |
| Wavelength - Peak | 634 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.44 | |
| 10 | $ 0.91 | |||
| 100 | $ 0.63 | |||
| 500 | $ 0.52 | |||
| Digi-Reel® | 1 | $ 1.44 | ||
| 10 | $ 0.91 | |||
| 100 | $ 0.63 | |||
| 500 | $ 0.52 | |||
| Tape & Reel (TR) | 1000 | $ 0.49 | ||
| 2000 | $ 0.46 | |||
| 3000 | $ 0.45 | |||
| 5000 | $ 0.43 | |||
| 7000 | $ 0.43 | |||
| 10000 | $ 0.42 | |||
| 25000 | $ 0.40 | |||
Description
General part information
ALMD-LG36 Series
Red 626nm LED Indication - Discrete 2.1V 4-SMD, Gull Wing
Documents
Technical documentation and resources
No documents available
