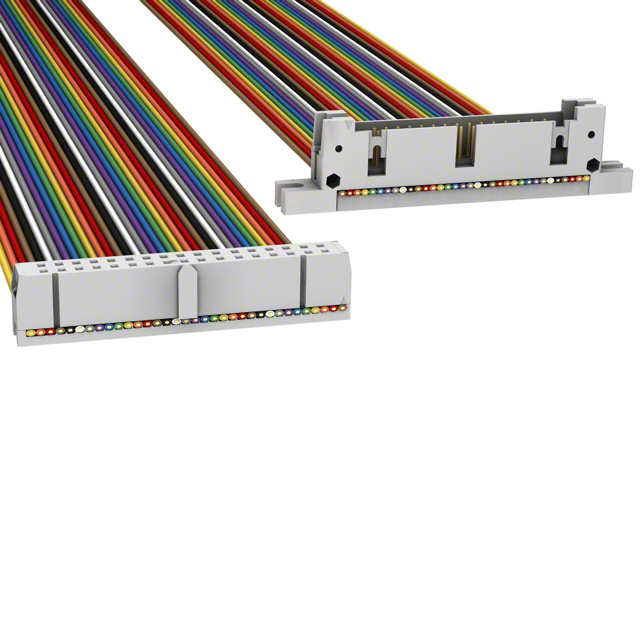

H3CWH-3406M

Active

Assmann WSW Components

IDC CBL - HHKC34H/AE34M/HHPL34H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKC34H/AE34M/HHPL34H

Technical Specifications

Parameters and characteristics for this part

Specification	H3CWH-3406M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Polarizing Key (Socket), Polarizing Key (Plug), Flange
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	34
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Color	Shielding	Connector Type	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Features	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Contact Finish	Cable Termination	Number of Positions	Number of Rows	Length	Length	Length
Assmann WSW Components H3CWH-3418M	Multiple Ribbon	Unshielded	Socket to Plug	Flash	0.1 in	2.54 mm	Flange Polarizing Key (Plug) Polarizing Key (Socket)	457.2 mm	1.5 ft	0.05 "	1.27 mm	Gold	IDC	34	2
Assmann WSW Components H3CWH-3406M	Multiple Ribbon	Unshielded	Socket to Plug	Flash	0.1 in	2.54 mm	Flange Polarizing Key (Plug) Polarizing Key (Socket)			0.05 "	1.27 mm	Gold	IDC	34	2	152.4 mm	6 "	0.5 '
Assmann WSW Components H3CWH-3436M	Multiple Ribbon	Unshielded	Socket to Plug	Flash	0.1 in	2.54 mm	Flange Polarizing Key (Plug) Polarizing Key (Socket)	914.4 mm	3 ft	0.05 "	1.27 mm	Gold	IDC	34	2
Assmann WSW Components H3CWH-3406G		Unshielded	Socket to Plug	Flash	0.1 in	2.54 mm	Flange Polarizing Key (Plug) Polarizing Key (Socket)			0.05 "	1.27 mm	Gold	IDC	34	2	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")
